HV7360 - Two or Three Level Ultrasound Pulser

Description

The Supertex HV7360 is a high voltage, high-speed, pulse generator with built-in, fast return to zero damping FETs.

This high voltage and high-speed integrated circuit is designed for portable medical ultrasound image devices, but can also can be used for NDT and test equipment applications.

Features

  • HVCMOS technology for high performance.
  • High density integration AC coupled pulser.
  • 0 to ±100V output voltage.
  • ±2.5A source and sink minimum pulse current.
  • Up to 35MHz operating frequency.
  • 2.0ns matched delay times.
  • 2.5, 3.3 or 5.0V CMOS logic interface.
  • Low power consumption and very simple to use ® HV7360 General.

📥 Download Datasheet

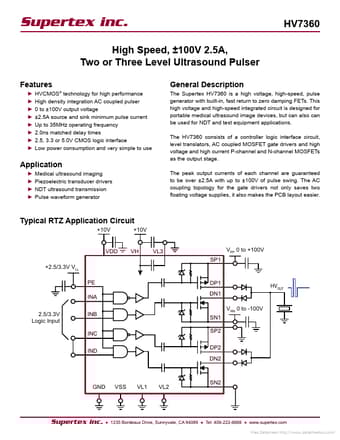

Datasheet preview – HV7360

Datasheet Details

Part number HV7360
Manufacturer Supertex
File Size 842.48 KB
Description Two or Three Level Ultrasound Pulser
Datasheet download datasheet HV7360 Datasheet
Additional preview pages of the HV7360 datasheet.

📁 Similar Datasheet

  • HV7360 - 2.5A Two-or-Three-Level Ultrasound Pulsers (Microchip)
  • HV7361 - 2.5A Two-or-Three-Level Ultrasound Pulsers (Microchip)
  • HV73 - flat chip resistors (KOA)
  • HV731J - flat chip resistors (KOA)
  • HV7321 - High-Voltage Ultrasound Pulser (Microchip)
  • HV732A - flat chip resistors (KOA)
  • HV732B - flat chip resistors (KOA)
  • HV732H - flat chip resistors (KOA)
  • HV733A - flat chip resistors (KOA)
  • HV7351 - 3A Programmable High-Voltage Ultrasound-Transmit Beamformer (Microchip)
Other Datasheets by Supertex
  • HV732 - Integrated Ultrasound Pulser
  • HV7331 - Ultrasound RTZ Pulser
  • HV7350 - Ultrasound RTZ Pulser
  • HV7351 - Eight Channel Programmable High Voltage Ultrasound Transmit Beamformer
  • HV7355 - Ultrasound Pulser
  • HV7370 - Ultrasound Damper
  • HV738 - Ultrasound Pulser
  • HV739 - Ultrasound Pulser

Full PDF Text Transcription

Click to expand full text
Supertex inc. High Speed, ±100V 2.5A, Two or Three Level Ultrasound Pulser Features ►► HVCMOS technology for high performance ►► High density integration AC coupled pulser ►► 0 to ±100V output voltage ►► ±2.5A source and sink minimum pulse current ►► Up to 35MHz operating frequency ►► 2.0ns matched delay times ►► 2.5, 3.3 or 5.0V CMOS logic interface ►► Low power consumption and very simple to use ® HV7360 General Description The Supertex HV7360 is a high voltage, high-speed, pulse generator with built-in, fast return to zero damping FETs. This high voltage and high-speed integrated circuit is designed for portable medical ultrasound image devices, but can also can be used for NDT and test equipment applications.
