HV895 Datasheet, Driver, Supertex

HV895 Features

  • Driver
  • Drives capacitive loads up to 200pF
  • Programmable drive amplitude (up to 60VRMS)
  • On-chip boost converter
  • No external inductor www.DataSheet4U.com

PDF File Details

Part number:

HV895

Manufacturer:

Supertex

File Size:

526.51kb

Download:

📄 Datasheet

Description:

Liquid lens driver. The HV895 is designed to drive liquid lenses of up to 200pF with a 1.5kHz waveform at amplitudes up to 60VRMS, controlled via an I2C

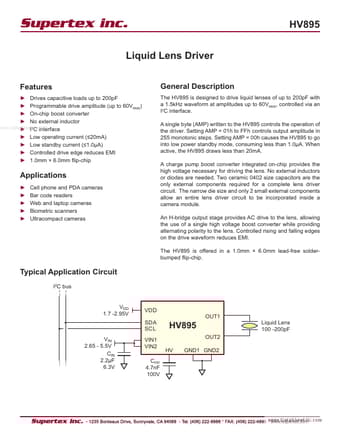

Datasheet Preview: HV895 📥 Download PDF (526.51kb)
Page 2 of HV895 Page 3 of HV895

HV895 Application

  • Applications
  • Cell phone and PDA cameras Bar code readers Web and laptop cameras Biometric scanners

TAGS

HV895
Liquid
Lens
Driver
Supertex
