MD0105

Four-Channel High Voltage Protection T/R Switch

Supertex

MD0105 Features

* Up to ±130V input voltage protection

* Low on resistance - 15Ω typical

* Fast switching speed

* Four electrically isolated channels

* No external supplies needed Applications

* Medical ultrasound imaging

* NDT applications

* F

MD0105 General Description

The Supertex MD0105 is a high voltage current limiting protection device. It is designed to protect a low noise receiver from the high voltage transmit pulses in ultrasound applications and is commonly referred to as a T/R (transmit and receive) switch. The MD0105 can be considered as a normally clo.

MD0105 Datasheet (337.86 KB)

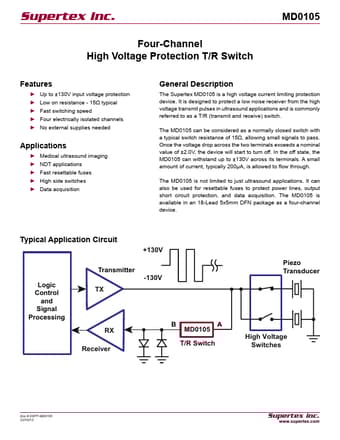

MD0105 Datasheet Preview — Preview of MD0105 PDF

Datasheet Details

Part number:

MD0105

Manufacturer:

Supertex

File Size:

337.86 KB

Description:

Four-channel high voltage protection t/r switch.
