MD1711 - HIGH SPEED INTEGRATED ULTRASOUND DRIVER IC

Description

The Supertex MD1711 is an IC for a two-channel, 5-level, high voltage and high speed transmitter driver.

It is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, Non-Destructive Testing (NDT), and for driving piezoelectric transducers.

Features

  • Drives two ultrasound transducer channels.
  • Generates 5-level waveform.
  • Drives 12 high voltage MOSFETs.
  • ±2.0A source and sink peak current.
  • Up to 20MHz output frequency.
  • 12V/ns slew rate.
  • ±3ns matched delay times.
  • Second harmonic is less than -40dB.
  • Two separate gate drive voltages.
  • 1.8 to 3.3V CMOS logic interface.

📥 Download Datasheet

Datasheet preview – MD1711

Datasheet Details

Part number MD1711
Manufacturer Supertex
File Size 350.83 KB
Description HIGH SPEED INTEGRATED ULTRASOUND DRIVER IC
Datasheet download datasheet MD1711 Datasheet
Additional preview pages of the MD1711 datasheet.

📁 Similar Datasheet

  • MD1730 - 8-Channel Ultra-Low Phase Noise Continuous Waveform Transmitter (Microchip)
  • MD1 - SILICON MINI BRIDGE RECTIFIER (Rectron Semiconductor)
  • MD1-1280-22-E - Single Diode Module (Proton-Electrotex)
  • MD1-B-34-615-1-A36-B-C - Miniature hydraulic/magnetic circuit breakers (Carling Technologies)
  • MD1-B-34-620-2-A33-B-C - Miniature hydraulic/magnetic circuit breakers (Carling Technologies)
  • MD10 - SURFACE MOUNT BRIDGE RECTIFIER (Gulf Semiconductor)
  • MD100 - Diode Modules (PST)
  • MD100 - Diode Modules (LGE)
  • MD1000 - PowerVault Support Matrix (Dell)
  • MD1000 - Diode Modules (TECHSEM)
Other Datasheets by Supertex
  • MD1712 - Integrated Ultrasound Driver IC
  • MD1715 - Ultrasound Driver IC
  • MD1716 - Ultrasound Driver IC
  • MD1210 - HIGH SPEED DUAL MOSFET DRIVER
  • MD1211 - HIGH SPEED DUAL MOSFET DRIVER
  • MD1213 - High Speed Dual MOSFET Driver
  • MD1810 - HIGH SPEED QUAD MOSFET DRIVER
  • MD1811 - HIGH SPEED QUAD MOSFET DRIVER

Full PDF Text Transcription

Click to expand full text

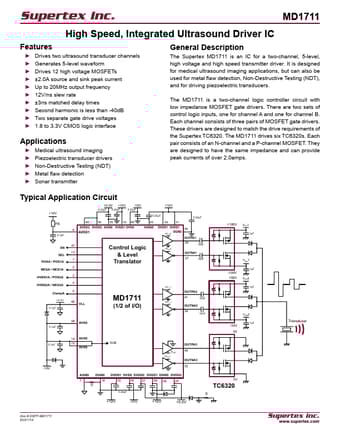

Supertex inc. MD1711 High Speed, Integrated Ultrasound Driver IC Features ►► Drives two ultrasound transducer channels ►► Generates 5-level waveform ►► Drives 12 high voltage MOSFETs ►► ±2.0A source and sink peak current ►► Up to 20MHz output frequency ►► 12V/ns slew rate ►► ±3ns matched delay times ►► Second harmonic is less than -40dB ►► Two separate gate drive voltages ►► 1.8 to 3.3V CMOS logic interface Applications ►► Medical ultrasound imaging ►► Piezoelectric transducer drivers ►► Non-Destructive Testing (NDT) ►► Metal flaw detection ►► Sonar transmitter General Description The Supertex MD1711 is an IC for a two-channel, 5-level, high voltage and high speed transmitter driver.
