MD1715

Ultrasound Driver IC

MD1715 Features

* Advanced CMOS technology

* ±4.75 to 12.9V gate drive voltage

* 2A output source and sink current

* 6.5ns rise and fall time with 1nF load

* 10ns propagation delay

* ±2ns matched delay times

* 12 matched channels

* 1.8V to 3.3V

MD1715 General Description

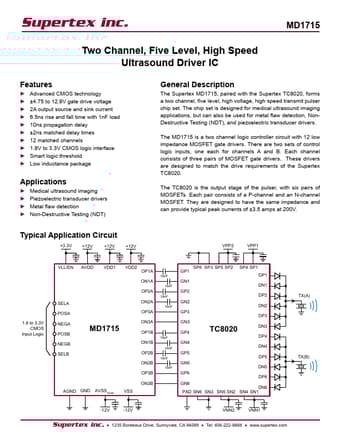

The Supertex MD1715, paired with the Supertex TC8020, forms a two channel, five level, high voltage, high speed transmit pulser chip set. The chip set is designed for medical ultrasound imaging applications, but can also be used for metal flaw detection, NonDestructive Testing (NDT), and piezoelectr.

MD1715 Datasheet (373.36 KB)

Preview of MD1715 PDF

Datasheet Details

Part number:

MD1715

Manufacturer:

Supertex

File Size:

373.36 KB

Description:

Ultrasound driver ic.
