V7X394-B-10 HIGH VOLTAGE CHIP CAPACITORS

HIGH VOLTAGE CHIP CAPACITORS 1. PART NO. EXPRESSION : V7X SERIES V7X103J-B-10 (a) (b) (c) (d) (e) (f) (a) Chip Size (b) Temp. Coefficient : X ( ±15% ) ( Temp. range : -55°C to +125°C ) (c) Capacitance code : 103 = 10000pF (d) Tolerance code (e) Voltage code : B = 200Vdc (f) 10 : Lead Free 2. CONFIGURATION & DIMENSIONS : A D L G B C PCB Pattern Unit:m/m A B C D G H L 4.60±0.30 3.20±0.30 3.00 Max. 0.30 Min. 2.80 - 3.40 2.30 - 3.00 1.80 - 2.00 3. SCHEMATIC : 4. MATERIALS : b a Ag.

V7X394-B-10 Datasheet (487.38 KB)

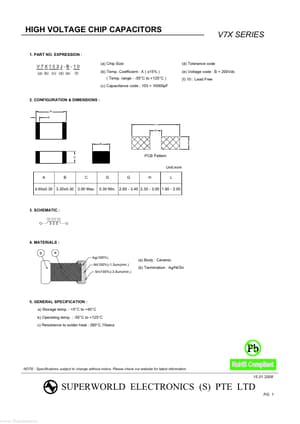

Preview of V7X394-B-10 PDF

Datasheet Details

Part number:

V7X394-B-10

Manufacturer:

Superworld Electronics

File Size:

487.38 KB

Description:

High voltage chip capacitors.
