SDM109HHA-1R0MF
.Data Sheet.co.kr

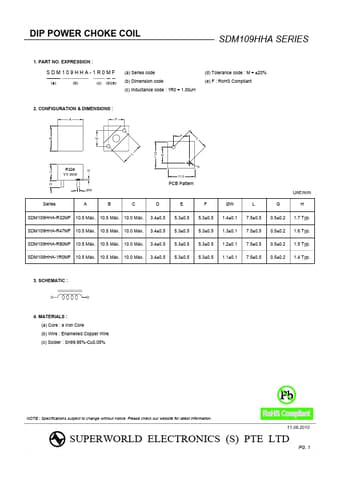

DIP POWER CHOKE COIL
1. PART NO. EXPRESSION :
SDM109HHA SERIES
(a) (b) (c) (d)(e)
(a) Series code (b) Dimension code (c) Inductance code : 1R0 = 1.00u H
(d) Tolerance code : M = ±20% (e) F : Ro HS pliant
2. CONFIGURATION & DIMENSIONS :
R32e YY.WW
PCB Pattern
ØW
Unit:m/m B C D 3.4±0.5 3.4±0.5 3.4±0.5 3.4±0.5 E 5.3±0.5 5.3±0.5 5.3±0.5 5.3±0.5 F 5.3±0.5 5.3±0.5 5.3±0.5 5.3±0.5 ØW 1.4±0.1 1.3±0.1 1.2±0.1 1.1±0.1 L 7.5±0.5 7.5±0.5 7.5±0.5 7.5±0.5 G 0.5±0.2 0.5±0.2 0.5±0.2 0.5±0.2 H 1.7 Typ. 1.6 Typ. 1.5 Typ. 1.4 Typ.
Series SDM109HHA-R32MF SDM109HHA-R47MF SDM109HHA-R80MF SDM109HHA-1R0MF
A 10.5 Max.
10.5 Max. 10.0 Max.
10.5 Max. 10.5 Max. 10.0 Max. 10.5 Max. 10.5 Max. 10.5 Max. 10.0 Max. 10.5 Max. 10.0 Max.
3. SCHEMATIC :
4. MATERIALS : (a) Core : e Iron Core (b) Wire : Enamelled Copper Wire (c) Solder : Sn99.95%-Cu0.05%
NOTE : Specifications subject to change without notice. Please check our website...
