SDM109HHA DIP POWER CHOKE COIL

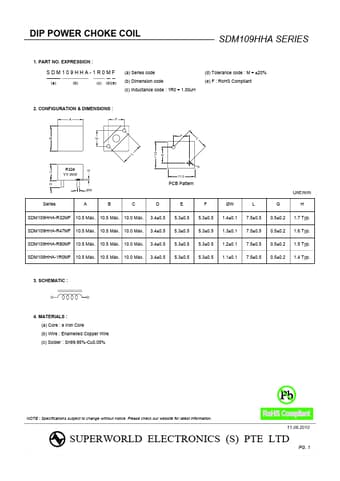

www.DataSheet.co.kr DIP POWER CHOKE COIL 1. PART NO. EXPRESSION : SDM109HHA SERIES SDM109HHA-1R0MF (a) (b) (c) (d)(e) (a) Series code (b) Dimension code (c) Inductance code : 1R0 = 1.00uH (d) Tolerance code : M = ±20% (e) F : RoHS Compliant 2. CONFIGURATION & DIMENSIONS : A F B E F L 11.0 E L R32e YY.WW H C G 11.0 PCB Pattern ØW D Unit:m/m B C D 3.4±0.5 3.4±0.5 3.4±0.5 3.4±0.5 E 5.3±0.5 5.3±0.5 5.3±0.5 5.3±0.5 F 5.3±0.5 5.3±0.5 5.3±0.5 5.3±0.5 ØW 1.4±0.1 1.3±0.1 1.2±0.1 1.1±0.
