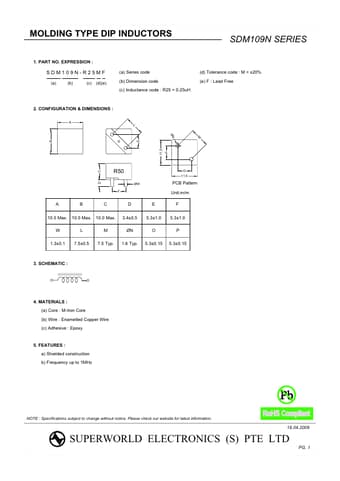

SDM109N
FEATURES
: a) Shielded construction b) Frequency up to 1MHz
NOTE : Specifications subject to change without notice. Please check our website for latest information.
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
Datasheet pdf
- http://..net/
.Data Sheet.co.kr
MOLDING TYPE DIP INDUCTORS
6. GENERAL SPECIFICATION : a) Test Frequency : 100KHz/1.0Vdc b) Operating temp. : -25°C to +125°C c) Ambient temp. : 25°C d) Irms (A) : Will cause an approximately temp. rise < 40°C typ. e) Isat (A) : Will cause L0 to drop approximately 20% typ.
SDM109N SERIES f) Part temperature (ambient + temp. rise) : Should not exceed 125°C under worst case operating conditions.
7. ELECTRICAL CHARACTERISTICS : Part No. SDM109N-R25MF SDM109N-R50MF SDM109N-R56MF SDM109N-R68MF SDM109N-R80MF Inductance L0 ( u H ) ±20% @ 0Adc 0.25 0.50 0.56 0.68 0.80 Q Min. 20 20 20 15 15 Irms (A) Typ. 35 32 30 30 10 Isat (A) Max. 40 38 35 35 20 DCR ( mȍ ) Max. 0.8 1.0 1.0 1.3 1.3
8. CHARACTERISTICS CURVES : Inductance vs....
