SL386 Datasheet - System Logic Semiconductor

SL386 Low Voltage Audio Power AMP

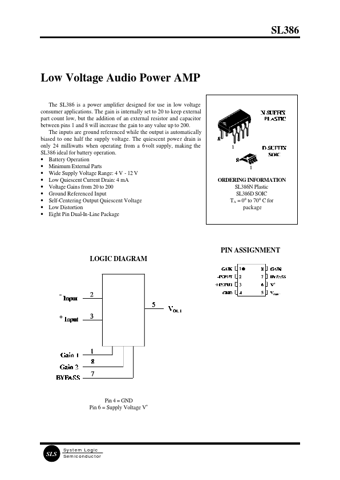

SL386 Low Voltage Audio Power AMP The SL386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground referenced while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply,.

SL386 Datasheet (33.18 KB)

Preview of SL386 PDF

Datasheet Details

Part number:

SL386

Manufacturer:

System Logic Semiconductor

File Size:

33.18 KB

Description:

Low voltage audio power amp.
