SA8204 - Over Voltage and Adjustable Current Protector

Datasheet Details

Part number	SA8204
Manufacturer	Sytatek
File Size	328.09 KB
Description	Over Voltage and Adjustable Current Protector
Datasheet	SA8204-Sytatek.pdf

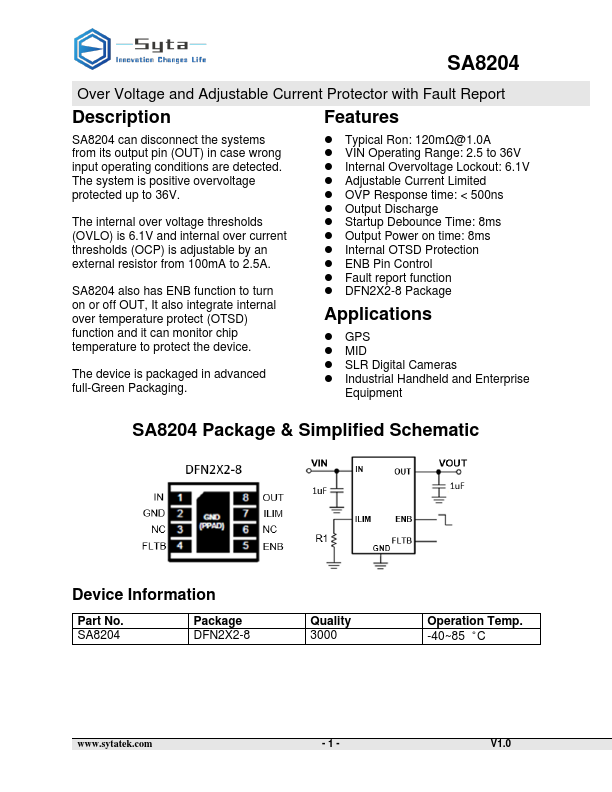

SA8204 can disconnect the systems from its output pin (OUT) in case wrong input operating conditions are detected. The system is positive overvoltage protected up to 36V. The internal over voltage thresholds (OVLO) is 6.1V and internal over current thresholds (OCP) is adjustable by an external resistor from 100mA to 2.5A. SA8204 also has ENB function to turn on or off OUT, It also integrate internal over temperature protect (OTSD) function and it can monitor chip temperature to protect the devi.
