SA8329 - 2.5A 2.7-12.0V Triple H-Bridge Motor Driver

📥 Download Datasheet

SA8329 Datasheet Preview — Preview of SA8329 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SA8329
Manufacturer	Sytatek
File Size	146.47 KB
Description	2.5A 2.7-12.0V Triple H-Bridge Motor Driver
Datasheet	SA8329-Sytatek.pdf

SA8329 Product details

Description

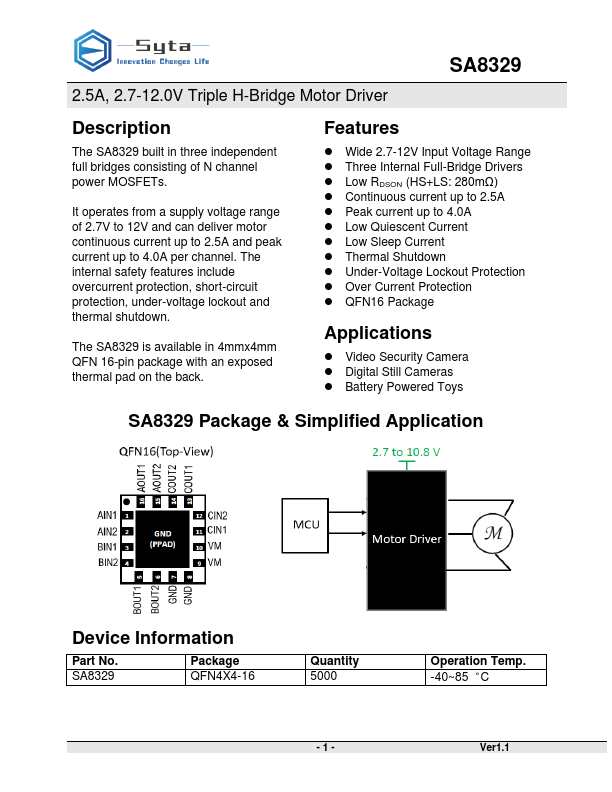

The SA8329 built in three independent full bridges consisting of N channel power MOSFETs.

Features

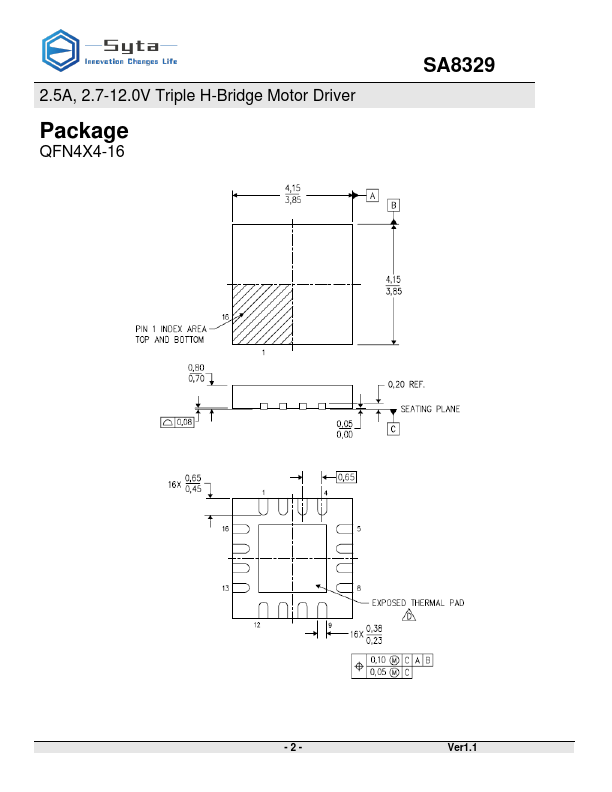

include overcurrent protection, short-circuit protection, under-voltage lockout and thermal shutdown. The SA8329 is available in 4mmx4mm QFN 16-pin package with an exposed thermal pad on the back. Features.
Wide 2.7-12V Input Voltage Range.
Three Internal Full-Bridge Drivers.
Low RDSON (HS+LS: 280mΩ).
Continuous current up to 2.5A.
Peak current up to 4.0A.
Low Quiescent Current.
Low Sleep Current.
Thermal Shutdown.
Under-Voltage Lockout Protection.
