SA8339 - 3.5A 3.0-15.0V H-Bridge Driver

SA8339 Datasheet Preview — Preview of SA8339 PDF

Datasheet Details

Part number	SA8339
Manufacturer	Sytatek
File Size	149.43 KB
Description	3.5A 3.0-15.0V H-Bridge Driver
Datasheet	SA8339-Sytatek.pdf

SA8339 Product details

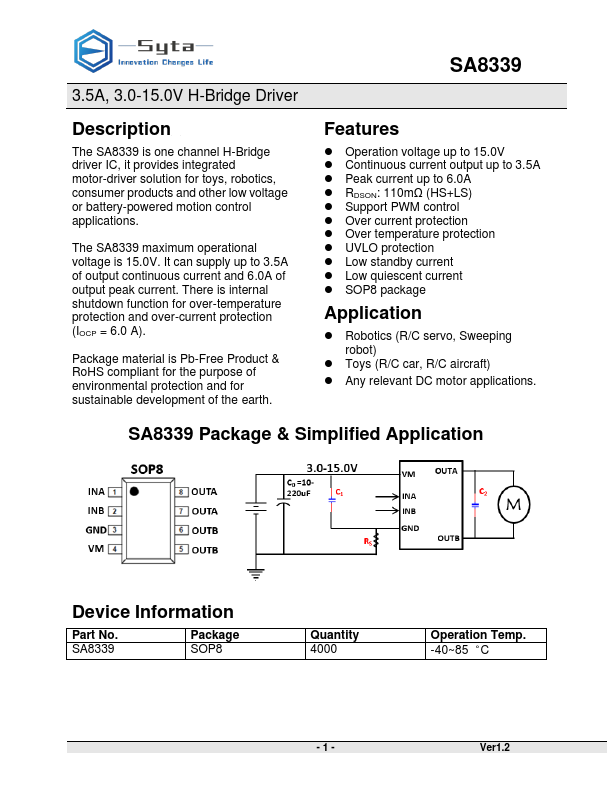

Description

The SA8339 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications.

Features

Operation voltage up to 15.0V.
Continuous current output up to 3.5A.
Peak current up to 6.0A.
RDSON: 110mΩ (HS+LS).
Support PWM control.
Over current protection.
Over temperature protection.
UVLO protection.
Low standby current.
Low quiescent current.

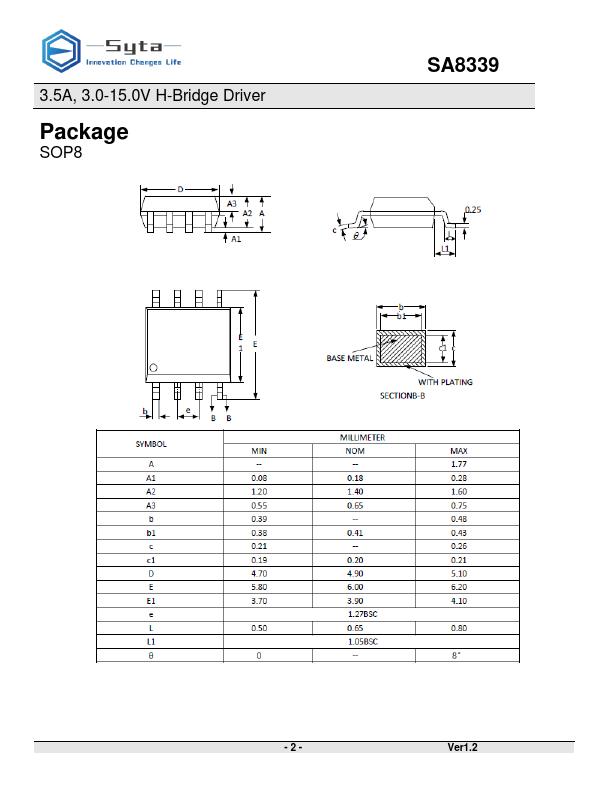

SOP8 package.
