SA8340 - 3.0-25.0V 4.0A Brushed DC Motor Driver

📥 Download Datasheet

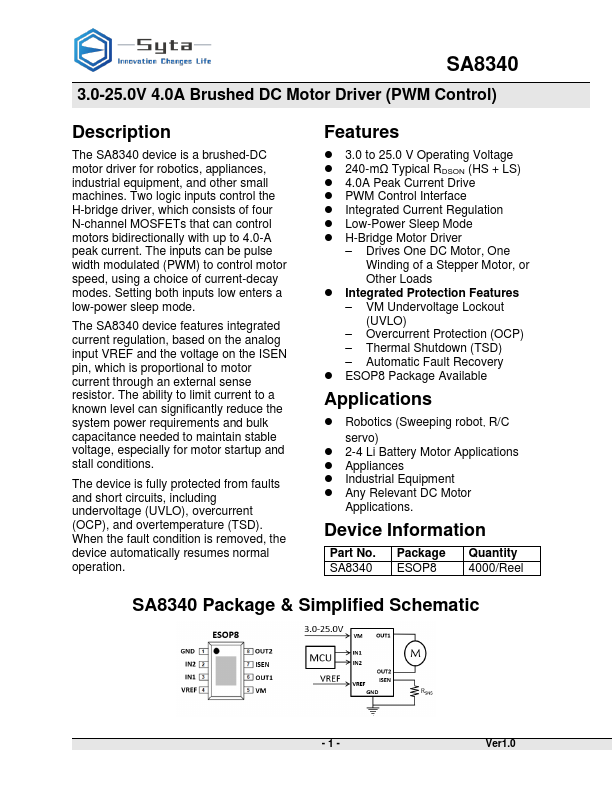

SA8340 Datasheet Preview — Preview of SA8340 PDF

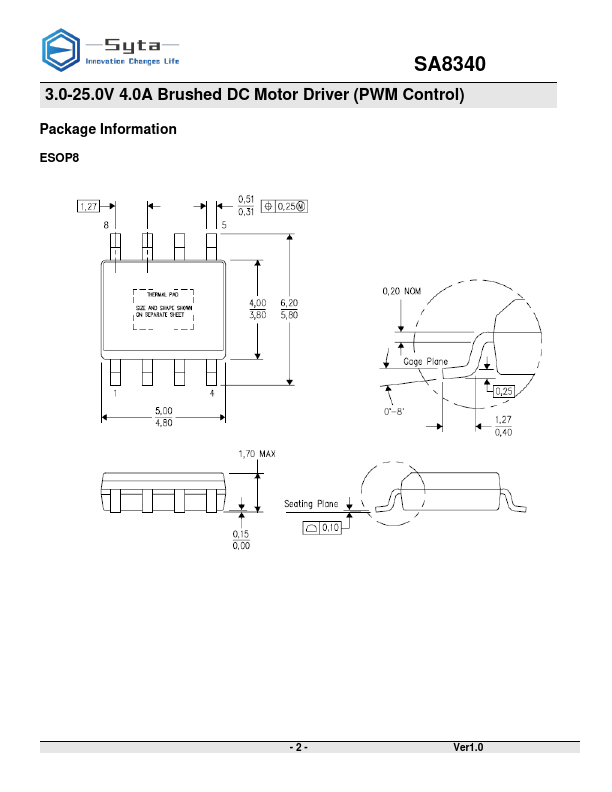

datasheet Preview Page 2

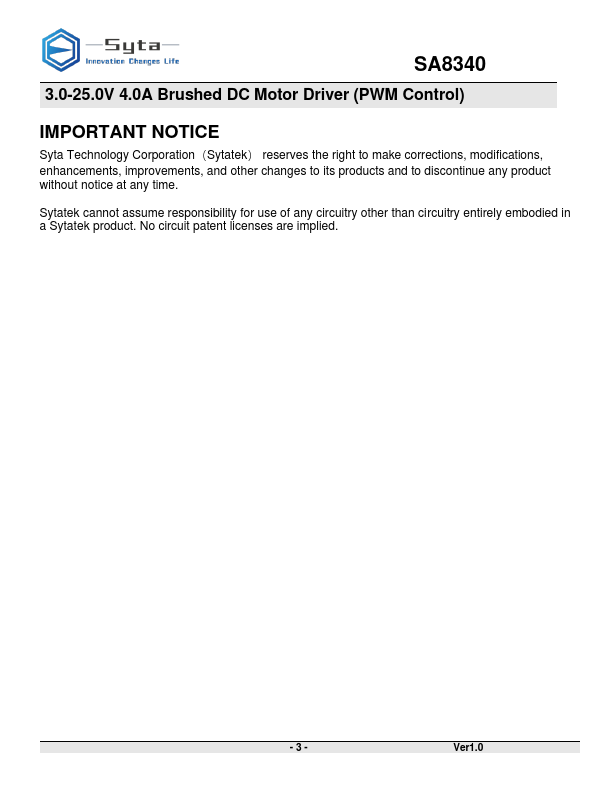

datasheet Preview Page 3

Datasheet Details

Part number	SA8340
Manufacturer	Sytatek
File Size	135.92 KB
Description	3.0-25.0V 4.0A Brushed DC Motor Driver
Datasheet	SA8340-Sytatek.pdf

SA8340 Product details

Description

The SA8340 device is a brushed-DC motor driver for robotics, appliances, industrial equipment, and other small machines.

Features

integrated current regulation, based on the analog input VREF and the voltage on the ISEN pin, which is proportional to motor current through an external sense resistor. The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage, especially for motor startup and stall conditions. The device is fully protected from faults and short circuits, including undervoltage (UVLO), overcurrent (OCP), and overte.
