SA8342 - 1.5A 3.0-25.0V H-Bridge Driver

Name: SA8342
SKU: SA8342-1594077

📥 Download Datasheet

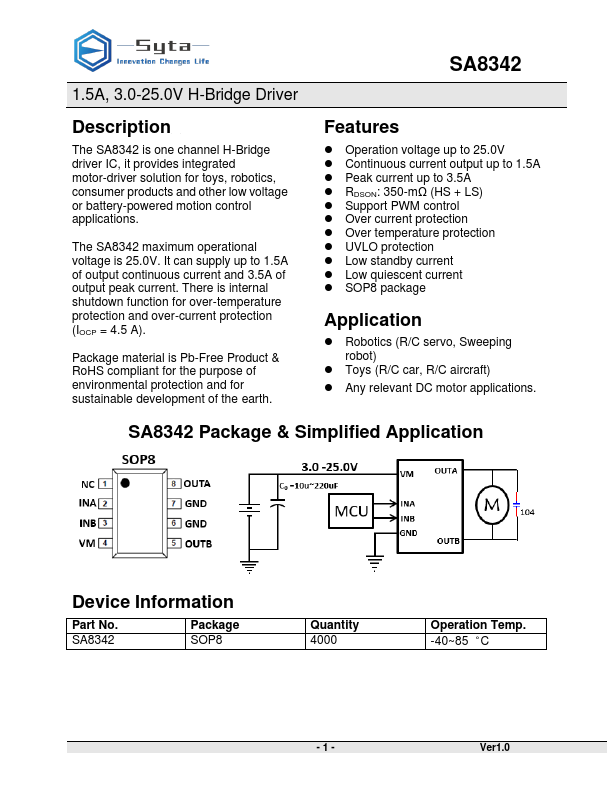

SA8342 Datasheet Preview — Preview of SA8342 PDF

Datasheet Details

Part number	SA8342
Manufacturer	Sytatek
File Size	141.22 KB
Description	1.5A 3.0-25.0V H-Bridge Driver
Datasheet	SA8342-Sytatek.pdf

SA8342 Product details

Description

The SA8342 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications.

Features

Operation voltage up to 25.0V.
Continuous current output up to 1.5A.
Peak current up to 3.5A.
RDSON: 350-mΩ (HS + LS).
Support PWM control.
Over current protection.
Over temperature protection.
UVLO protection.
Low standby current.
Low quiescent current.

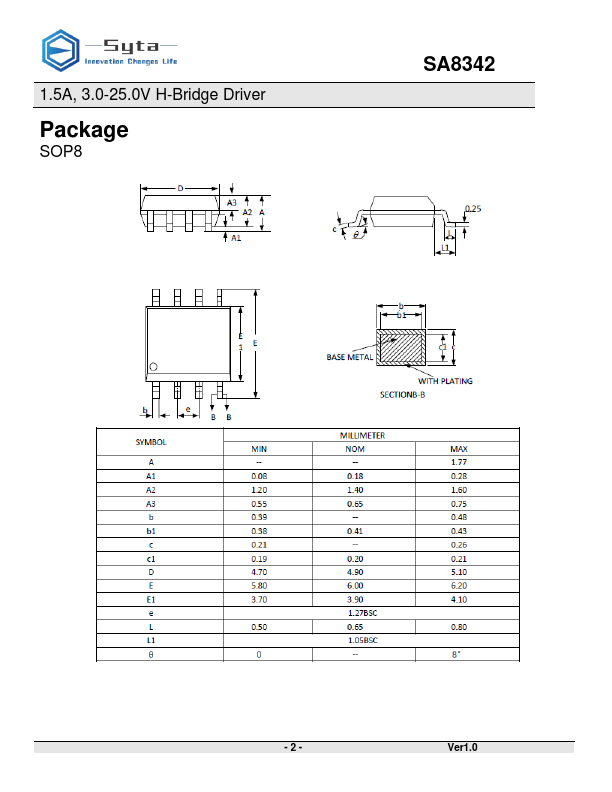

SOP8 package.
