SA8350 - 1A 5.0-32.0V H-Bridge Driver

Name: SA8350
SKU: SA8350-1594070

📥 Download Datasheet

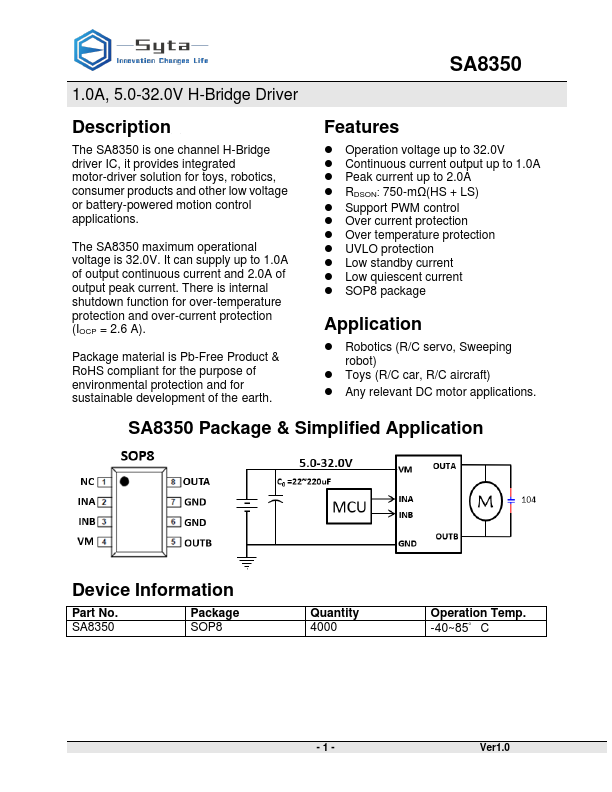

SA8350 Datasheet Preview — Preview of SA8350 PDF

Datasheet Details

Part number	SA8350
Manufacturer	Sytatek
File Size	153.16 KB
Description	1A 5.0-32.0V H-Bridge Driver
Datasheet	SA8350-Sytatek.pdf

SA8350 Product details

Description

The SA8350 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications.

Features

Operation voltage up to 32.0V.
Continuous current output up to 1.0A.
Peak current up to 2.0A.
RDSON: 750-mΩ(HS + LS).
Support PWM control.
Over current protection.
Over temperature protection.
UVLO protection.
Low standby current.
Low quiescent current.

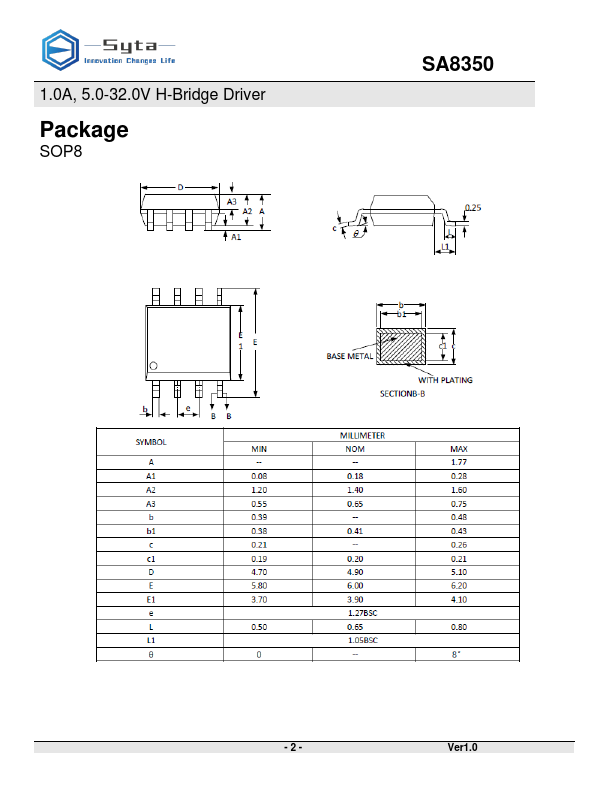

SOP8 package.
