SA9120 - 1A 4.0-32.0V H-Bridge Driver

Name: SA9120
SKU: SA9120-1594069

📥 Download Datasheet

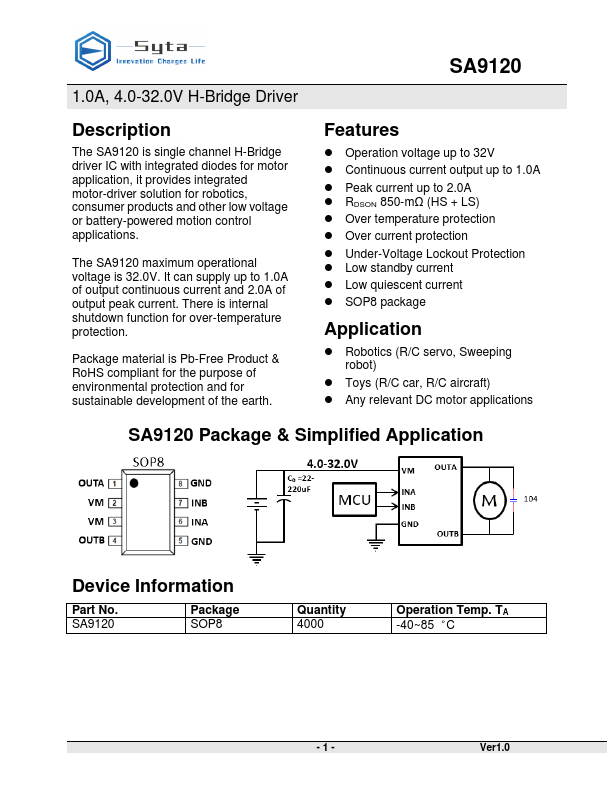

SA9120 Datasheet Preview — Preview of SA9120 PDF

Datasheet Details

Part number	SA9120
Manufacturer	Sytatek
File Size	138.29 KB
Description	1A 4.0-32.0V H-Bridge Driver
Datasheet	SA9120-Sytatek.pdf

SA9120 Product details

Description

The SA9120 is single channel H-Bridge driver IC with integrated diodes for motor application, it provides integrated motor-driver solution for robotics, consumer products and other low voltage or battery-powered motion control applications.

Features

Operation voltage up to 32V.
Continuous current output up to 1.0A.
Peak current up to 2.0A.
RDSON 850-mΩ (HS + LS).
Over temperature protection.
Over current protection.
Under-Voltage Lockout Protection.
Low standby current.
Low quiescent current.

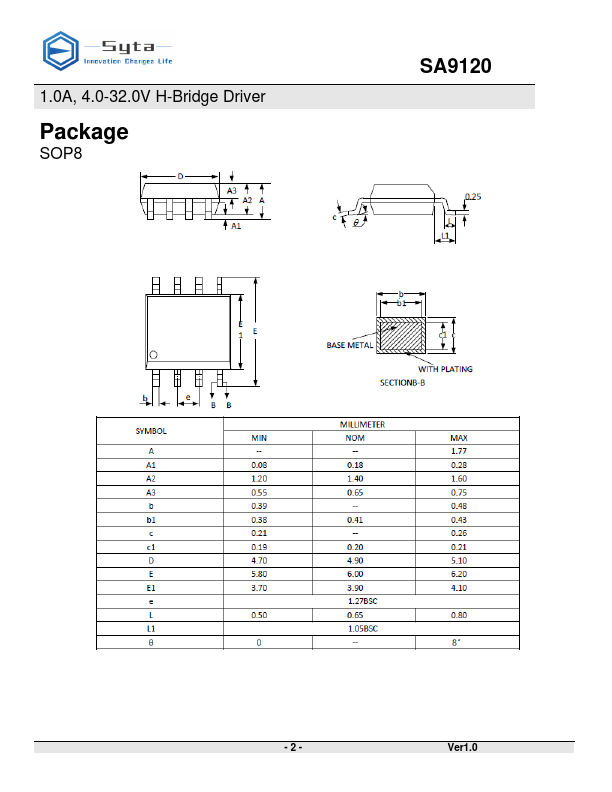

SOP8 package.
