EGP15D (EGP15x) 1.5A Sintered Glass Passivated Super Fast Recovery Rectifier

Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current EGP15A 50 35 50 EGP15B 100 70 100 EGP15D 200 140 200 1.5 EGP15G 400 280 400 EGP15J 600 420 600 EGP15K 800 560 800 Unit V V V A Conditions VRRM.

EGP15D Features

* Sintered www.DataSheet4U.com

* glass passivated (SGP) rectifier chip Low forward voltage, high current capability Low leakage current, high surge current capability High temperature soldering guaranteed: 260°C/10 seconds /.0375" (9.5mm) lead length, 5l

EGP15D Datasheet (177.37 KB)

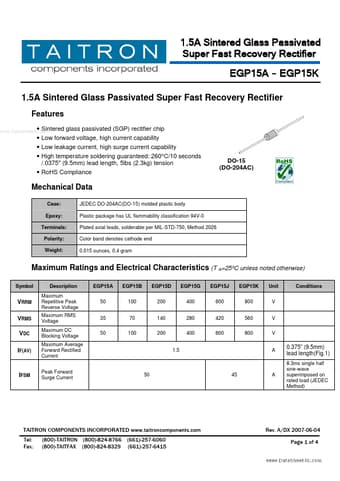

EGP15D Datasheet Preview — Preview of EGP15D PDF

Datasheet Details

Part number:

EGP15D

Manufacturer:

TAITRON Components Incorporated

File Size:

177.37 KB

Description:

(egp15x) 1.5a sintered glass passivated super fast recovery rectifier.
