1.5SMCJ8.2A

1500W Surface Mount Transient Voltage Suppressor

1.5SMCJ8.2A Features

* Low inductance, excellent clamping capability

* Repetition rate(duty cycle): 0.05%

* Fast response time: typically less than 1.0ps from 0V to BV min.

* Typical IR less than 1 µA above 10V SMC

* High temperature soldering guaranteed 250°C/10 seconds at t

1.5SMCJ8.2A General Description

Value PPPM IPPM Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse.

1.5SMCJ8.2A Datasheet (181.63 KB)

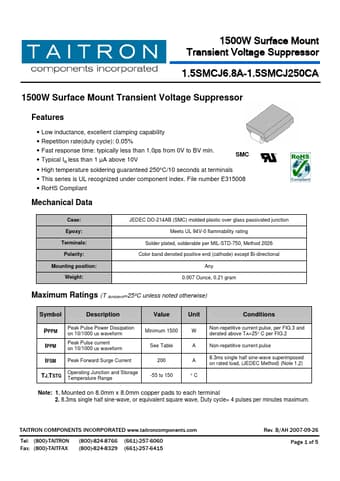

Preview of 1.5SMCJ8.2A PDF

Datasheet Details

Part number:

1.5SMCJ8.2A

Manufacturer:

TAITRON

File Size:

181.63 KB

Description:

1500w surface mount transient voltage suppressor.
