1N34A - Germanium Glass Diode

TAITRON

The 1N34A by TAITRON is a Germanium Glass Diode. Below is the official datasheet preview.

📥 Download Datasheet

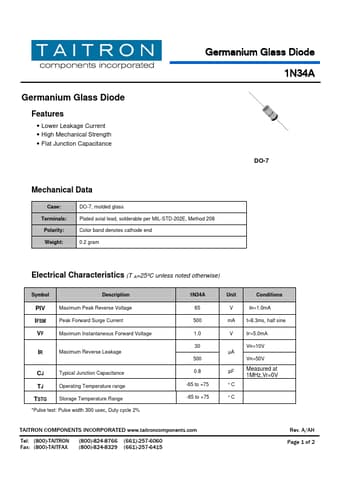

1N34A Germanium Glass Diode by TAITRON - Datasheet Preview — Official preview page of the **1N34A** Germanium Glass Diode datasheet (TAITRON).

Datasheet Details

Part number	1N34A
Manufacturer	TAITRON
File Size	78.61 KB
Description	Germanium Glass Diode
Datasheet	1N34A-TAITRON.pdf
Additional preview pages of the 1N34A datasheet.

1N34A Product details

Description

Maximum Peak Reverse Voltage Peak Forward Surge Current Maximum Instantaneous Forward Voltage IR Maximum Reverse Leakage CJ Typical Junction Capacitance TJ Operating Temperature range TSTG Storage Temperature Range Pulse test: Pulse width 300 usec, Duty cycle 2% 1N34A 65 500 1.0 30 500 0.8 -65 to +75 -65 to +75 Unit Conditions V IR=1.0mA mA t=8.3ms, half sine V IF=5.0mA VR=10V µA VR=50V pF Measured at 1MHz,Vr=0V °C °C TAITRON COMPONENTS INCORPORATED www.taitroncomponents.c

Features

Lower Leakage Current.
High Mechanical Strength.
Flat Junction Capacitance Germanium Glass Diode 1N34A DO-7 Mechanical Data Case: Terminals: Polarity: Weight: DO-7, molded glass Plated axial lead, solderable per MIL-STD-202E, Method 208 Color band denotes cathode end 0.2 gram Electrical Characteristics (T A=25ºC unless noted otherwise) Symbol PIV IFSM VF.
