1N4747A 1W Zener Diodes

Value Unit Conditions PD Power Dissipation above 25°C 1W VF Forward Voltage 1.2 V IF=0.1 A TJ Max. Junction Temperature 150 °C TSTG Storage Temperature Range -65 to +150 °C TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (.

1N4747A Features

* 1W Power Dissipation

* Built-in Strain Relief

* Low Inductance

* High Stability

* Zener Voltage from 3.3V to 75V

* High temperature soldering guaranteed: 260°C/10 seconds /.037" (9.5mm) lead length,

* RoHS Compliance Mechanical Data Case: Te

1N4728A-TAITRON.pdf

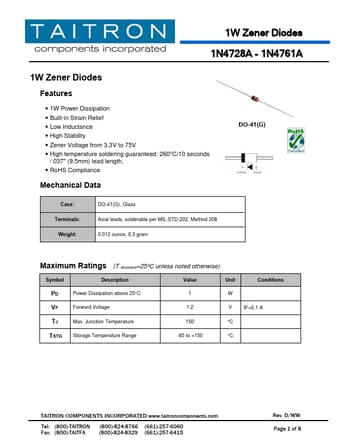

1N4747A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4747A, 1N4728A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4747A, 1N4728A

Manufacturer:

TAITRON

File Size:

277.11 KB

Description:

1w zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N4747A, 1N4728A.
Please refer to the document for exact specifications by model.
