5.0SMCJ75A, 5.0SMCJ12A, 5000W Surface Mount Transient Voltage Suppressor

5000W Surface Mount Transient Voltage Suppressor 5.0SMCJ12A/CA * 5.0SMCJ170A/CA 5000W Surface Mount Transient Voltage Suppressor .

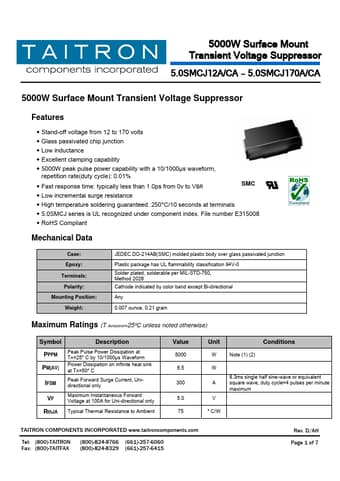

datasheet Preview Page 1 from Datasheet4u.com

5.0SMCJ12A-TAITRON.pdf

5.0SMCJ75A Datasheet Preview — This datasheet PDF includes multiple part numbers: 5.0SMCJ75A, 5.0SMCJ12A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

5.0SMCJ75A, 5.0SMCJ12A

Manufacturer:

TAITRON

File Size:

237.03 KB

Description:

5000W Surface Mount Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: 5.0SMCJ75A, 5.0SMCJ12A.
Please refer to the document for exact specifications by model.

Features

* Stand-off voltage from 12 to 170 volts
* Glass passivated chip junction
* Low inductance
* Excellent clamping capability
* 5000W peak pulse power capability with a 10/1000μs waveform, repetition rate(duty cycle): 0.01%
* Fast response time: typ
