BAS21WS, BAS19WS - Three Terminals Surface Mount Switching Diode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS21WS, BAS19WS. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BAS21WS, BAS19WS
Manufacturer TAITRON
File Size 182.44 KB
Description Three Terminals Surface Mount Switching Diode
Datasheet download datasheet BAS19WS-TAITRON.pdf
Note This datasheet PDF includes multiple part numbers: BAS21WS, BAS19WS.
Please refer to the document for exact specifications by model.

BAS21WS Product details

Description

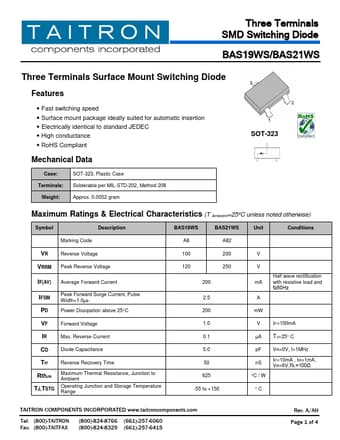

BAS19WS BAS21WS Unit Conditions Marking Code A8 A82 VR Reverse Voltage 100 200 V VRRM Peak Reverse Voltage IF(AV) IFSM PD Average Forward Current Peak Forward Surge Current, Pulse Width=1.0µs Power Dissipation above 25°C 120 250 200 2.5 200 V Half wave rectification mA with resistive load and f≥50Hz A mW VF Forward Voltage 1.0 V IF=100mA IR Max.Reverse Current 0.1 µA TJ=25°C CD Diode Capacitance Trr Reverse Recovery Time RthJA TJ,TSTG Maximu
