BZT52C12-F, BZT52C2V4-F Datasheet - TAITRON

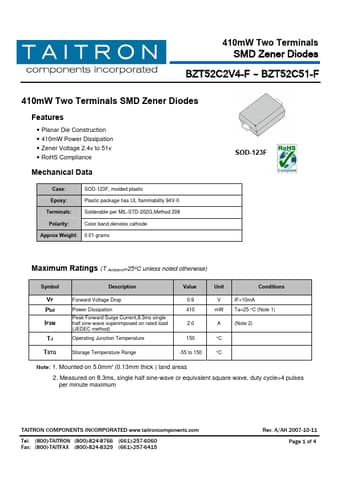

BZT52C12-F 410mW Two Terminals SMD Zener Diodes

Forward Voltage Drop Power Dissipation Peak Forward Surge Current,8.3ms single half sine-wave superimposed on rated load (JEDEC method) Operating Junction Temperature Storage Temperature Range Value 0.9 410 2.0 150 -55 to 150 Unit Conditions V IF=10mA mW Ta=25 °C (Note 1) A (Note 2) °C °C Not.

BZT52C12-F Features

* Planar Die Construction

* 410mW Power Dissipation

* Zener Voltage 2.4v to 51v

* RoHS Compliance Mechanical Data Case: SOD-123F, molded plastic Epoxy: Plastic package has UL flammability 94V-0 Terminals: Solderable per MIL-STD-202G,Method 208 Polarity: Color

BZT52C2V4-F-TAITRON.pdf

This datasheet PDF includes multiple part numbers: BZT52C12-F, BZT52C2V4-F. Please refer to the document for exact specifications by model.
BZT52C12-F Datasheet Preview Page 2 BZT52C12-F Datasheet Preview Page 3

Datasheet Details

Part number:

BZT52C12-F, BZT52C2V4-F

Manufacturer:

TAITRON

File Size:

208.18 KB

Description:

410mw two terminals smd zener diodes.

Note:

This datasheet PDF includes multiple part numbers: BZT52C12-F, BZT52C2V4-F.
Please refer to the document for exact specifications by model.
