BZX55C2V4 - 500mW Zener Diodes

TAITRON

📥 Download Datasheet

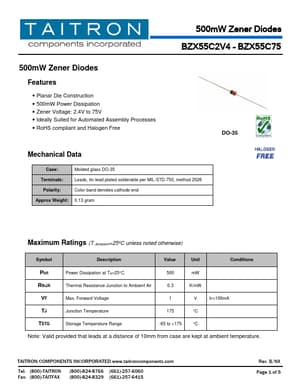

BZX55C2V4 Datasheet Preview — Preview of BZX55C2V4 PDF

Datasheet Details

Part number	BZX55C2V4
Manufacturer	TAITRON
File Size	333.59 KB
Description	500mW Zener Diodes
Datasheet	BZX55C2V4-TAITRON.pdf

BZX55C2V4 Product details

Description

Value Unit Conditions Ptot Power Dissipation at Ta=25°C 500 mW RthJA Thermal Resistance Junction to Ambient Air 0.3 K/mW VF Max.Forward Voltage 1 V IF=100mA TJ Junction Temperature 175 °C TSTG Storage Temperature Range -65 to +175 °C Note: Valid provided that leads at a distance of 10mm from case are kept at ambient temperature.TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (

Features

Planar Die Construction.
500mW Power Dissipation.
Zener Voltage: 2.4V to 75V.
Ideally Suited for Automated Assembly Processes.
RoHS compliant and Halogen Free DO-35 Mechanical Data Case: Molded glass DO-35 Terminals: Leads, tin-lead plated solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end Approx Weight: 0.13 gram Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol.
