Datasheet Details
Part number:
BZX55C39, BZX55C2V4
Manufacturer:
TAITRON
File Size:
333.59 KB
Description:
500mw zener diodes.
Note:
This datasheet PDF includes multiple part numbers: BZX55C39, BZX55C2V4.
Please refer to the document for exact specifications by model.

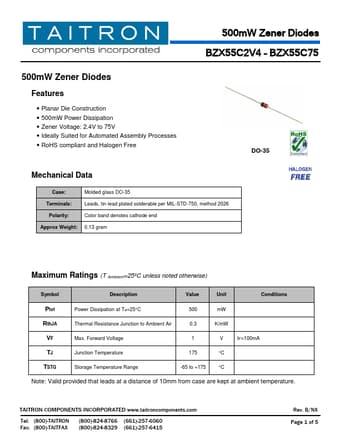

BZX55C39, BZX55C2V4, 500mW Zener Diodes
Value Unit Conditions Ptot Power Dissipation at Ta=25°C 500 mW RthJA Thermal Resistance Junction to Ambient Air 0.3 K/mW VF Max.
Forward Voltage 1 V IF=100mA TJ Junction Temperature 175 °C TSTG Storage Temperature Range -65 to +175 °C Note: Valid provided that leads at a distance of
BZX55C39 Features
* Planar Die Construction
* 500mW Power Dissipation
* Zener Voltage: 2.4V to 75V
* Ideally Suited for Automated Assembly Processes
* RoHS compliant and Halogen Free DO-35 Mechanical Data Case: Molded glass DO-35 Terminals: Leads, tin-lead plated solderable per MIL-STD-750,
