DF2005S - 2.0A Glass Passivated Bridge Rectifier

Datasheet Summary

Features

  • Glass passivated chip junction.
  • Low leakage.
  • High surge current capability.
  • Ideal for printed circuit boards DFMS.
  • Reliable low cost construction utilizing molded plastic technique.
  • High temperature soldering guaranteed: 260˚C/10 seconds at 5lbs. (2.3kg) tension.
  • Small size, simple installation.
  • RoHS compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: DFMS, Molded plastic body over passivated junct.

📥 Download Datasheet

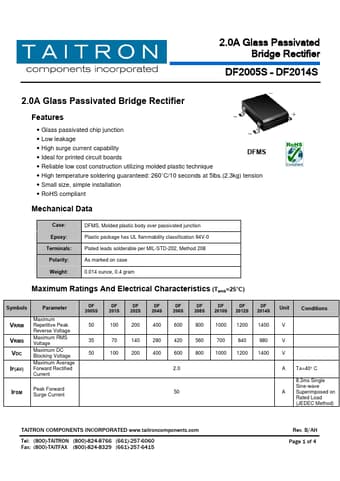

Datasheet preview – DF2005S
