EH13A, EH11A Datasheet - TAITRON

EH13A - Positive Voltage Regulator

* LD1117A is a three terminal low dropout positive voltage regulator.

It provides current limiting and thermal shut down and its circuit includes a trimmed Bandgap reference to assure output voltage accuracy for both fixed output voltage version and adjustable output voltage version.

Current

EH13A Features

* Input Voltage up to 20V

* Output Current up to 1A

* Low Drop Output Voltage:Typical 1.15V at 1A output current

* Output Voltage Accuracy : ±1% for fixed output Voltage 1.5V,1.8V, 2.5V ,2.85V, 3.3V,5.0V and Adjustble Output Voltage Version. ±2% for fixed output Volta

EH11A-TAITRON.pdf

This datasheet PDF includes multiple part numbers: EH13A, EH11A. Please refer to the document for exact specifications by model.

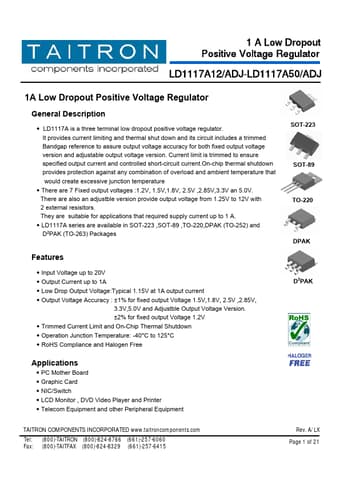

EH13A Datasheet Preview Page 2 EH13A Datasheet Preview Page 3

Datasheet Details

Part number:

EH13A, EH11A

Manufacturer:

TAITRON

File Size:

427.66 KB

Description:

Positive voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: EH13A, EH11A.
Please refer to the document for exact specifications by model.
