MMBZ5243B 350mW Surface Mount Zener Diodes

PD Power Dissipation above 25° C VF TJ TSTG Forward Voltage Max. Junction Temperature Storage Temperature Range Value 350 0.9 150 -55 to +150 Unit Conditions mW On Alumina heat sink with 4mm lead length V IF= 10mA °C °C TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-.

MMBZ5243B Features

* Planar Die construction

* 350mW Power Dissipation

* Standard Zener Voltage Tolerance is ± 5 %

* Ideally Suited for Automated Assembly Processes

* High temperature soldering guaranteed: 260 °C / 10 seconds in reflow soldering process

* RoHS compliant

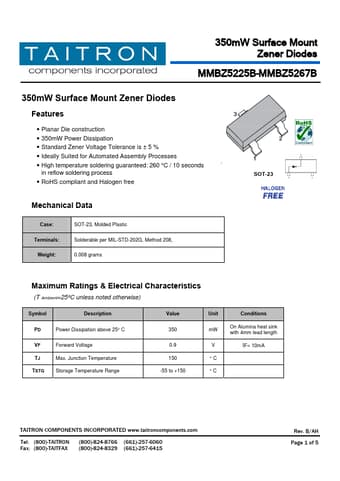

MMBZ5225B-TAITRON.pdf

MMBZ5243B Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBZ5243B, MMBZ5225B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MMBZ5243B, MMBZ5225B

Manufacturer:

TAITRON

File Size:

183.23 KB

Description:

350mw surface mount zener diodes.

Note:

This datasheet PDF includes multiple part numbers: MMBZ5243B, MMBZ5225B.
Please refer to the document for exact specifications by model.
