MPSA43

Small Signal High Voltage Transistors

MPSA43 Features

* This device is designed for application as a video output to drive color CRT and other high voltage applications.

* RoHS Compliance Mechanical Data Case: Terminals: Weight: TO-92, Plastic Package Solderable per MIL-STD-202G, Method 208 0.18 gram TO-92 Maximum Ratings (T Ambien

MPSA43 General Description

MPSA42 MPSA43 VCEO Collector-Emitter Voltage 300 200 VCBO Collector-Base Voltage 300 200 VEBO Emitter-Base Voltage 6.0 IC Collector Current Continuous 500 Power Dissipation at TA=25°C PD Derate above 25°C 625 5.0 PD RθJA RθJC TJ ,TSTG Power Dissipation at TC=25°C Derate above 25°C Th.

MPSA43 Datasheet (161.99 KB)

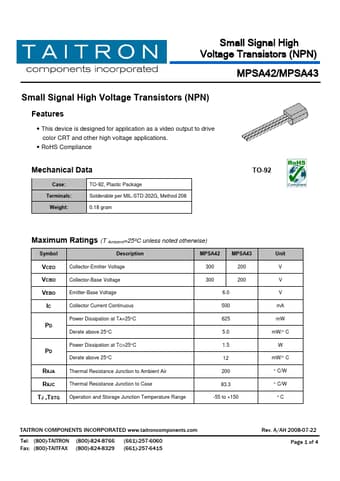

Preview of MPSA43 PDF

Datasheet Details

Part number:

MPSA43

Manufacturer:

TAITRON

File Size:

161.99 KB

Description:

Small signal high voltage transistors.
