P4SMAJ100A, P4SMAJ6.8A Datasheet - TAITRON

P4SMAJ100A 400W Surface Mount Transient Voltage Suppressor

Value PPPM IPPM Peak Pulse Power Dissipation on 10/1000 us wav.

P4SMAJ100A Features

* SMA z Breakdown voltage from 6.8 to 250 volts z Low inductance, excellent clamping capability z Repetition rate(duty cycle): 0.01% z Fast response time: typically less than 1.0ps from 0v to VBR z For unidirectional types z Typical IR less than 1 µA above 10V z High temperature soldering guaranteed

P4SMAJ6.8A-TAITRON.pdf

This datasheet PDF includes multiple part numbers: P4SMAJ100A, P4SMAJ6.8A. Please refer to the document for exact specifications by model.

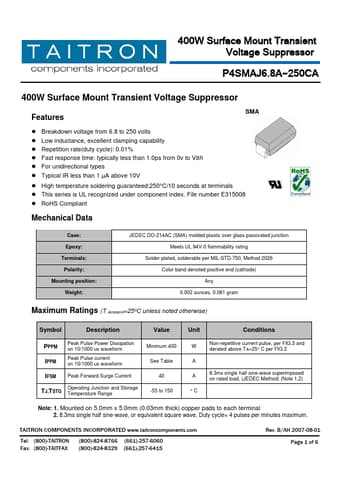

P4SMAJ100A Datasheet Preview Page 2 P4SMAJ100A Datasheet Preview Page 3

Datasheet Details

Part number:

P4SMAJ100A, P4SMAJ6.8A

Manufacturer:

TAITRON

File Size:

194.72 KB

Description:

400w surface mount transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: P4SMAJ100A, P4SMAJ6.8A.
Please refer to the document for exact specifications by model.
