RGF2D, RGF2A - 2.0A Sintered Glass Passivated Fast Recovery Rectifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RGF2D, RGF2A. Please refer to the document for exact specifications by model.

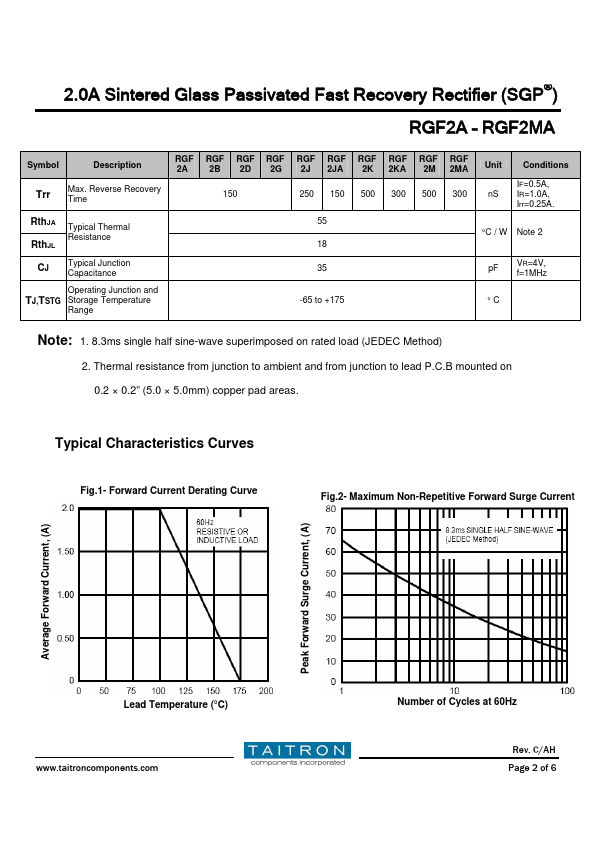

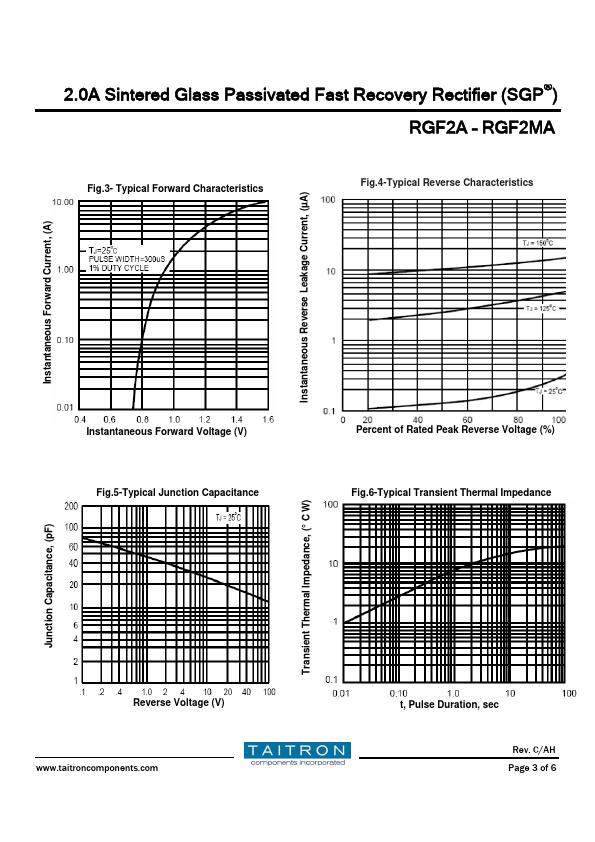

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RGF2D, RGF2A
Manufacturer TAITRON
File Size 177.03 KB
Description 2.0A Sintered Glass Passivated Fast Recovery Rectifier
Datasheet download datasheet RGF2A-TAITRON.pdf
Note This datasheet PDF includes multiple part numbers: RGF2D, RGF2A.
Please refer to the document for exact specifications by model.

RGF2D Product details

Description

VRRM Max.Repetitive Peak Reverse Voltage RGF RGF RGF RGF RGF RGF RGF RGF RGF RGF 2A 2B 2D 2G 2J 2JA 2K 2KA 2M 2MA Unit 50 100 200 400 600 600 800 800 1000 1000 V Conditions VRMS Max.RMS Voltage VDC Max.DC Blocking Voltage VF Max.Forward Voltage 35 70 140 280 420 420 560 560 700 700 V 50 100 200 400 600 600 800 800 1000 1000 V 1.3 V IF(AV)=2.0A IF(AV) Max.Average Forward Rectified Current 2.0 IR(AV) Max.Full Load Reverse Current 100 IFSM Peak Forward Surge Current 6

Features
