RMX1W

Metal Oxide Resistor

TAITRON

RMX1W Features

* Low cost, high performance, excellent long-term stability

* High power-to-size ratio for significant space savings

* High surge/overload capability, controlled temperature coefficient

* Non-inductive design, resistance range (0.1Ω to 100Ω) .

* Wide resistance range (0.1Ω to 1MΩ

RMX1W General Description

Power Rating at 70°C RMX 25T 1/4 RMX S50T 1/2 RMX 50T 1/2 RMX S1W 1 RMX 1W 1 RMX S2W 2 RMX 2W 2 RMX S3W 3 Maximum Working Voltage 200 250 250 300 350 350 350 350 Maximum Overload Voltage 300 400 400 500 600 600 600 600 Dielectric Withstanding Voltage 250 350 350 400 500 5.

RMX1W Datasheet (462.17 KB)

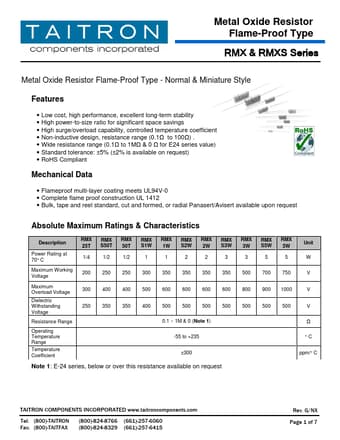

RMX1W Datasheet Preview — Preview of RMX1W PDF

Datasheet Details

Part number:

RMX1W

Manufacturer:

TAITRON

File Size:

462.17 KB

Description:

Metal oxide resistor.
