S2K

1.5A Surface Mount Rectifier

S2K Features

* Low profile surface mounted package

* Ideal for automated placement

* Glass passivated chip junction

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High temperature soldering: 250 °C / 10 seconds at termin

S2K General Description

VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage VDC IF(AV) Maximum DC Blocking Voltage Maximum Average Forward Rectified Current S2A S2B S2D S2G S2J 50 100 200 400 600 35 70 140 280 420 50 100 200 400 600 1.5 IFSM Peak Forward Surge Current 50 TJ, TSTG Oper.

S2K Datasheet (175.91 KB)

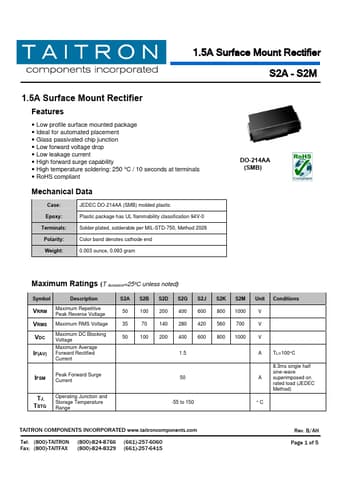

Preview of S2K PDF

Datasheet Details

Part number:

S2K

Manufacturer:

TAITRON

File Size:

175.91 KB

Description:

1.5a surface mount rectifier.
