S5D 5.0A Surface Mount Rectifier

TAITRON

S5D Description

5.0A Surface Mount Rectifier S5A * S5M 5.0A Surface Mount Rectifier .
S5A S5B S5D S5G S5J S5K S5M Unit Conditions VRRM VRMS Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage 50 35 100 200 400 600 800 1000.

S5D Features

* Low profile surface mounted package
* Ideal for automated placement
* Glass passivated chip junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* High temperature soldering: 250 °C / 10 seconds at termin

📥 Download Datasheet

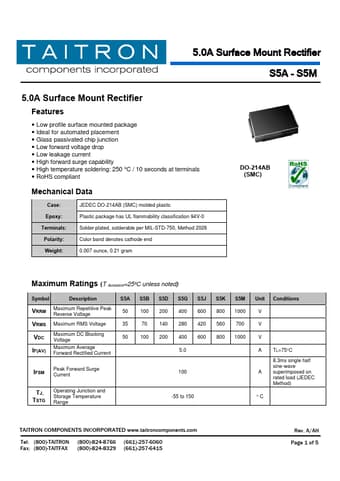

S5D Datasheet Preview — Preview of S5D PDF

Datasheet Details

Part number: S5D
Manufacturer: TAITRON
File Size: 177.38 KB
Datasheet: S5D-TAITRON.pdf
Description: 5.0A Surface Mount Rectifier
