SAC10

500W Low Capacitance Transient Voltage Suppressor

TAITRON

SAC10 Features

* Stand-off voltage from 5.0 to 50 volts Glass passivated junction Excellent clamping capability Low incremental surge resistance DO-15

* 400W peak pulse capability with a 10/1000us waveform, Repetition rate (duty cycle): 0.01%

* Fast response t

SAC10 General Description

Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse current with a 10/1000 us waveform Steady State Power Dissipation Operating Junction and Storage Value Minimum 500 See Table 3 -55 to 175 Unit W A W °C Conditions Non-repetitive current pulse, per Fig.3 and derated above TA=25° C per .

SAC10 Datasheet (155.12 KB)

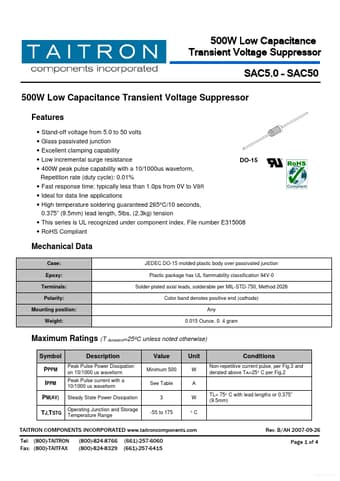

SAC10 Datasheet Preview — Preview of SAC10 PDF

Datasheet Details

Part number:

SAC10

Manufacturer:

TAITRON

File Size:

155.12 KB

Description:

500w low capacitance transient voltage suppressor.
