SAC6.0, SAC50 500W Low Capacitance Transient Voltage Suppressor

SAC6.0 Description

500W Low Capacitance Transient Voltage Suppressor SAC5.0 * SAC50 500W Low Capacitance Transient Voltage Suppressor .
Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse current with a 10/1000 us waveform Steady State Power Dissipation Operating Junction an.

SAC6.0 Features

* Stand-off voltage from 5.0 to 50 volts Glass passivated junction Excellent clamping capability Low incremental surge resistance DO-15
* 400W peak pulse capability with a 10/1000us waveform, Repetition rate (duty cycle): 0.01%
* Fast response t

SAC6.0 Applications

* High temperature soldering guaranteed 265°C/10 seconds, 0.375” (9.5mm) lead length, 5lbs, (2.3kg) tension
* This series is UL recognized under component index. File number E315008
* RoHS Compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Mounting position: Weight:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SAC6.0, SAC50. Please refer to the document for exact specifications by model.

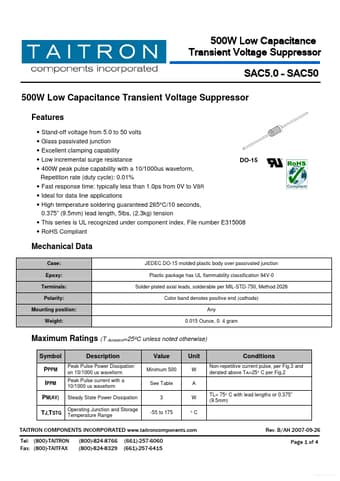

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SAC6.0, SAC50
Manufacturer
TAITRON
File Size
155.12 KB
Datasheet
SAC50_TAITRON.pdf
Description
500W Low Capacitance Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: SAC6.0, SAC50.
Please refer to the document for exact specifications by model.
