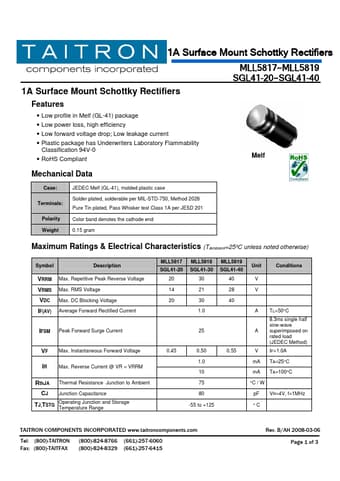

Description
VRRM VRMS VDC IF(AV)
Max.Repetitive Peak Reverse Voltage Max.RMS Voltage Max.DC Blocking Voltage Average Forward Rectified Current
IFSM Peak Forward Surge Current
VF Max.Instantaneous Forward Voltage
IR Max.Reverse Current @ VR = VRRM
RthJA Thermal Resistance Junction to Ambient
Features
- Low profile in Melf (GL-41) package.
- Low power loss, high efficiency.
- Low forward voltage drop; Low leakage current.
- Plastic package has Underwriters Laboratory Flammability
Classification 94V-0.
- RoHS Compliant
Melf
Mechanical Data
Case: Terminals:
Polarity Weight
JEDEC Melf (GL-41), molded plastic case Solder plated, solderable per MIL-STD-750, Method 2026 Pure Tin plated, Pass Whisker test Class 1A per JESD 201 Color band denotes the cathode en.
