SMBJ170CA

Transient Voltage Suppressor

SMBJ170CA Features

* z Stand-off voltage from 5.0 to 170 volts z 600W Peak Pulse Power capability on 10/1000 µs waveform repetition rate(duty cycle): 0.01% z Fast response time: typically less than 1.0ps from 0v to VBR z Low incremental surge resistance, excellent clamping capability z z z z Typical IR less than 1 uA ab

SMBJ170CA General Description

Stand-Off Voltage Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse current on 10/1000 us waveform Steady State Power Dissipation Peak Forward Surge Current Maximum Instantaneous Forward Voltage Operating and Storage 3.5 5.0 -55 to 150 Value 5.0 to 170 600 Minimum See Table 5.0 100 Unit.

SMBJ170CA Datasheet (200.85 KB)

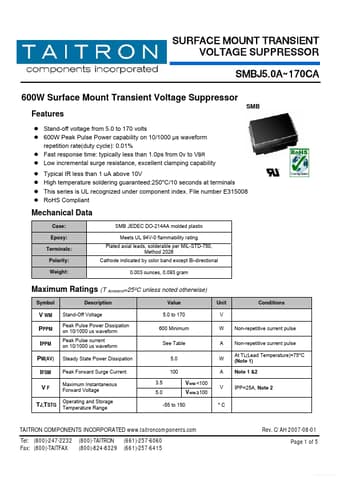

Preview of SMBJ170CA PDF

Datasheet Details

Part number:

SMBJ170CA

Manufacturer:

TAITRON

File Size:

200.85 KB

Description:

Transient voltage suppressor.
