SMCJ48A

Transient Voltage Suppressor

SMCJ48A Features

* Stand-off voltage from 5.0 to 170 volts

* Glass passivated junction

* 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate(duty cycle): 0.01%

* Fast response time: typically less than 1.0ps from 0v to VBR

* Low incremental surge resis

SMCJ48A General Description

Stand-Off Voltage Peak Pulse Power Dissipation on 10/1000μs Waveform(1) (2) Peak Pulse Current on 10/1000μs Waveform(1) Peak Forward Surge Current 8.3ms Single Half Sine-wave, Uni-directional only (2) Maximum Instantaneous Forward Voltage for Unidirectional only Operating Junction and Storage Value.

SMCJ48A Datasheet (239.60 KB)

Preview of SMCJ48A PDF

Datasheet Details

Part number:

SMCJ48A

Manufacturer:

TAITRON

File Size:

239.60 KB

Description:

Transient voltage suppressor.

📁 Related Datasheet

SMCJ48 Surface Mount Transient Voltage Suppressors (CYStech Electronics)

SMCJ48 Transient Voltage Suppressor (MCC)

SMCJ48 1500-WATT TVS (ProTek Devices)

SMCJ48 TVS Diodes (Kexin)

SMCJ48 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)

SMCJ48 Surface Mount Transient Voltage Suppressors (SOCAY)

SMCJ48 Transient Voltage Suppressors (LGE)

SMCJ48 (SMCJxx) Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor Company)

SMCJ48 Transient Voltage Suppressor (GME)

SMCJ48 Surface Mount 1500 Watt Transient Voltage Suppressor (Microsemi)

TAGS

SMCJ48A Transient Voltage Suppressor TAITRON

Image Gallery

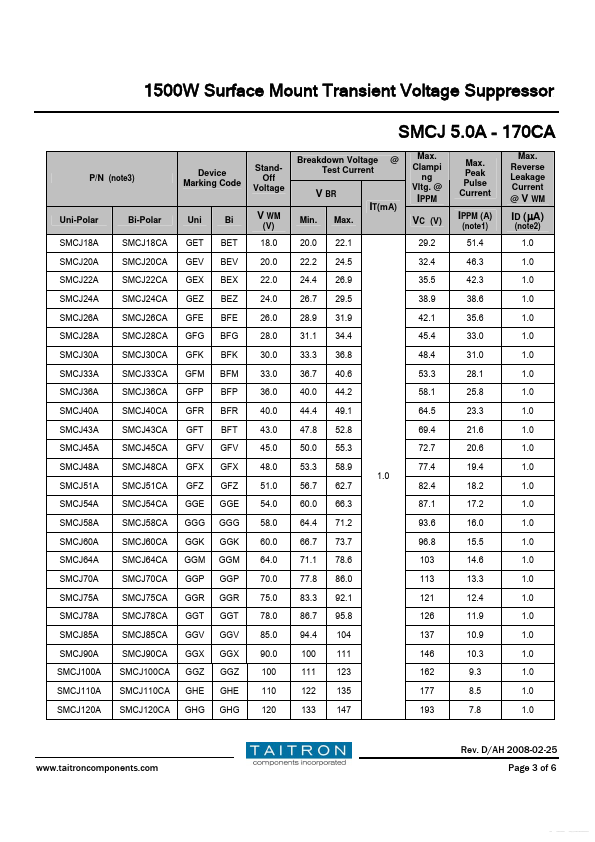

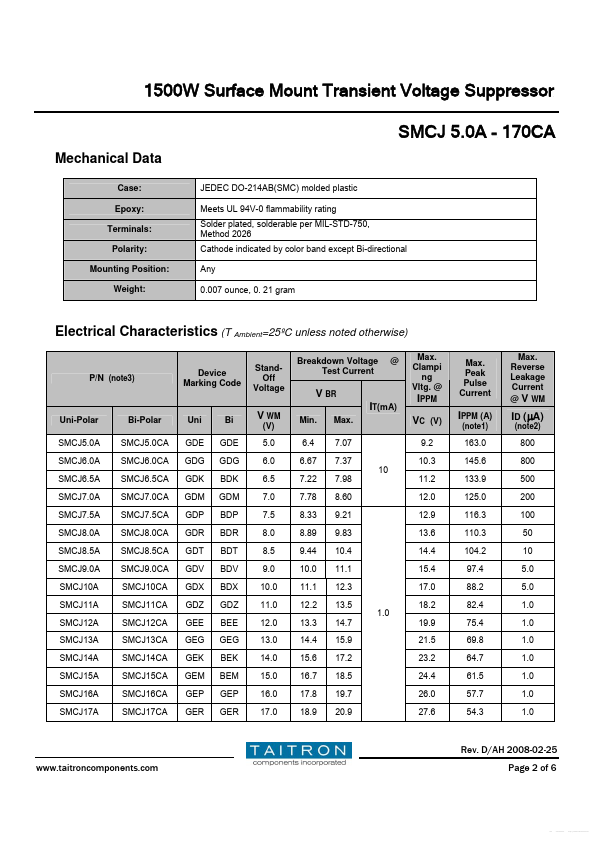

SMCJ48A Datasheet Preview Page 2 SMCJ48A Datasheet Preview Page 3
