SMCJ7.0CA

Transient Voltage Suppressor

SMCJ7.0CA Features

* Stand-off voltage from 5.0 to 170 volts

* Glass passivated junction

* 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate(duty cycle): 0.01%

* Fast response time: typically less than 1.0ps from 0v to VBR

* Low incremental surge resis

SMCJ7.0CA General Description

Stand-Off Voltage Peak Pulse Power Dissipation on 10/1000μs Waveform(1) (2) Peak Pulse Current on 10/1000μs Waveform(1) Peak Forward Surge Current 8.3ms Single Half Sine-wave, Uni-directional only (2) Maximum Instantaneous Forward Voltage for Unidirectional only Operating Junction and Storage Value.

SMCJ7.0CA Datasheet (239.60 KB)

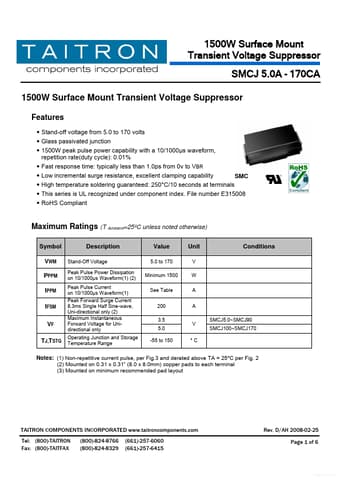

Preview of SMCJ7.0CA PDF

Datasheet Details

Part number:

SMCJ7.0CA

Manufacturer:

TAITRON

File Size:

239.60 KB

Description:

Transient voltage suppressor.
