SS22

2.0A Surface Mount Schottky Rectifier

SS22 Features

* For surface mount applications

* Metal-Semiconductor Junction with Guarding

* Epitaxial Construction

* Very low forward voltage drop

* High current capability

* For use in low voltage, high frequency inventers, free wheeling, and polarity protection

SS22 General Description

SS22 SS23 SS24 SS25 SS26 SS29 SS210 Unit Conditions Device Marking Code S2/SS22 S3/SS23 S4/SS24 S5/SS25 S6/SS26 S9/SS29 S10/SS210 .

SS22 Datasheet (184.25 KB)

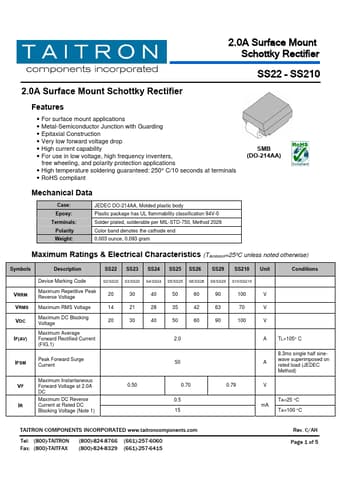

Preview of SS22 PDF

Datasheet Details

Part number:

SS22

Manufacturer:

TAITRON

File Size:

184.25 KB

Description:

2.0a surface mount schottky rectifier.
