TB101M - 10A Bridge Rectifier

This page provides the datasheet information for the TB101M, a member of the TB1005M 10A Bridge Rectifier family.

Features

Diffused junction.
High current capability.
High case dielectric strength.
High surge current capability.
Ideal for printed circuit board.

TAITRON

📥 Download Datasheet

Datasheet Details

Part number	TB101M
Manufacturer	TAITRON
File Size	191.11 KB
Description	10A Bridge Rectifier
Datasheet	TB101M Datasheet

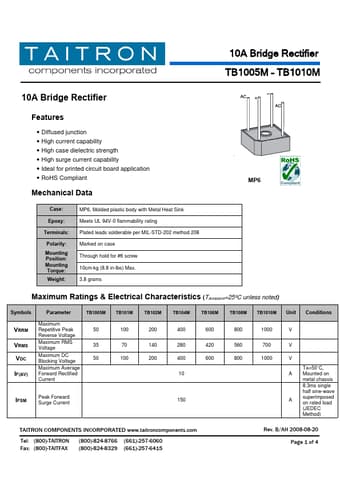

Additional preview pages of the TB101M datasheet.
