TB62 - 6.0A Single-Phase Silicon Bridge Rectifier

This page provides the datasheet information for the TB62, a member of the TB605 6.0A Single-Phase Silicon Bridge Rectifier family.

Datasheet Summary

Description

Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current Maximum Forward Voltage Maximum Reverse Current at Rated DC Blocking Voltage per element Typical junction capacitance Operating Temperature Ran

Features

  • High forward surge current capability.
  • Ideal for printed circuit board.
  • High temperature soldering guaranteed: 260°C/10 seconds/5 lbs. (2.3kg) tension.
  • RoHS Compliant TB6 Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: Molded plastic body Meets UL 94V-0 flammability rating Lead solderable per MIL-STD-202E method 208C Marked on case 3.8 grams Maximum Ratings & Electrical Characteristics (TAmbient=25ºC unless noted) Symbol.

📥 Download Datasheet

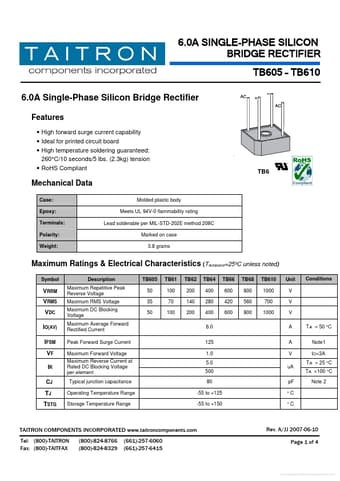

Datasheet preview – TB62

Datasheet Details

Part number TB62
Manufacturer TAITRON
File Size 195.95 KB
Description 6.0A Single-Phase Silicon Bridge Rectifier
Datasheet download datasheet TB62 Datasheet
