TGL41-8.2

The TGL41-8.2 is 400W Surface Mount Transient Voltage Suppressor designed by TAITRON.

Product Overview

TAITRON

📥 Download Datasheet

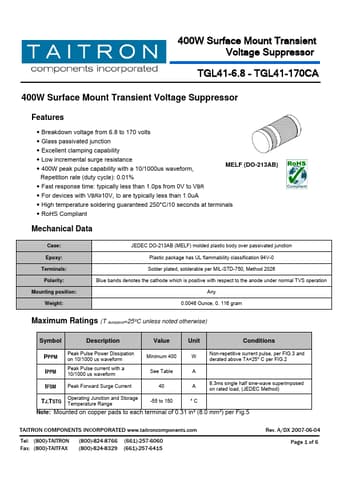

TGL41-8.2 400W Surface Mount Transient Voltage Suppressor by TAITRON - Datasheet Preview — Datasheet preview – TGL41-8.2

Datasheet Details

Part number	TGL41-8.2, TGL416.8
Manufacturer	TAITRON
File Size	239.00 KB
Description	400W Surface Mount Transient Voltage Suppressor
Datasheet	TGL416.8-TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: TGL41-8.2, TGL416.8. Please refer to the document for exact specifications by model.
Additional preview pages of the TGL41-8.2 datasheet.

Product details

Features

Breakdown voltage from 6.8 to 170 volts.
Glass passivated junction.
Excellent clamping capability.
Low incremental surge resistance.
400W peak pulse capability with a 10/1000us waveform, MELF (DO-213AB) Repetition rate (duty cycle): 0.01%.
Fast response time: typically less than 1.0ps from 0V to VBR.
For devices with VBR≥10V, ID are typically less than 1.0uA.
High temperature soldering guaranteed 250°C/10 seconds a.
