TGL419.1CA

The TGL419.1CA is 400W Surface Mount Transient Voltage Suppressor designed by TAITRON.

Product Overview

TAITRON

📥 Download Datasheet

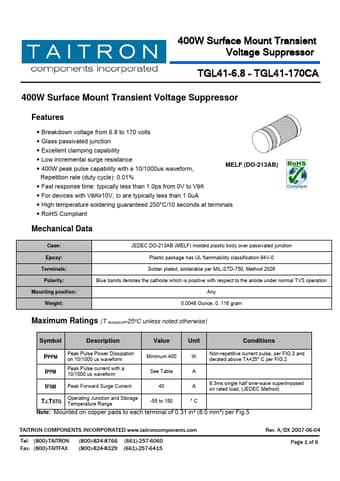

TGL419.1CA 400W Surface Mount Transient Voltage Suppressor by TAITRON - Datasheet Preview — Datasheet preview – TGL419.1CA

Datasheet Details

Part number	TGL419.1CA, TGL416.8
Manufacturer	TAITRON
File Size	239.00 KB
Description	400W Surface Mount Transient Voltage Suppressor
Datasheet	TGL416.8-TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: TGL419.1CA, TGL416.8. Please refer to the document for exact specifications by model.
Additional preview pages of the TGL419.1CA datasheet.

Product details

Features

Breakdown voltage from 6.8 to 170 volts.
Glass passivated junction.
Excellent clamping capability.
Low incremental surge resistance.
400W peak pulse capability with a 10/1000us waveform, MELF (DO-213AB) Repetition rate (duty cycle): 0.01%.
Fast response time: typically less than 1.0ps from 0V to VBR.
For devices with VBR≥10V, ID are typically less than 1.0uA.
High temperature soldering guaranteed 250°C/10 seconds a.
