TZ130B, TZ100B - 1W Zener Diodes

TAITRON

TZ130B Datasheet Preview — This datasheet PDF includes multiple part numbers: TZ130B, TZ100B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TZ130B, TZ100B
Manufacturer	TAITRON
File Size	187.85 KB
Description	1W Zener Diodes
Datasheet	TZ100B_TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: TZ130B, TZ100B. Please refer to the document for exact specifications by model.

TZ130B Product details

Description

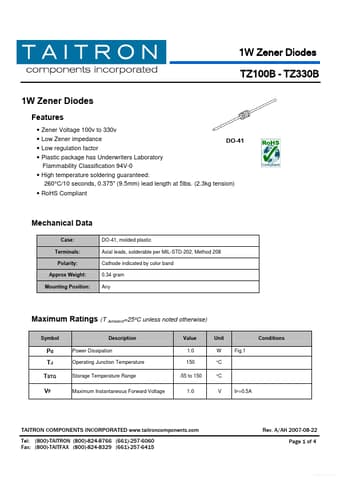

Power Dissipation Operating Junction Temperature Storage Temperature Range Maximum Instantaneous Forward Voltage Value 1.0 150 -55 to 150 1.0 Unit W °C °C V IF=0.5A Fig.1 Conditions Pd TJ TSTG VF TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415 Rev.A/AH 2007-08-22 Page 1 of 4 Free Datasheet http://www.datasheet4u.com/ 1W Zener Diodes TZ100B - TZ330B Electrical Characteristics (T Ambie

Features

Zener Voltage 100v to 330v.
Low Zener impedance DO-41.
Low regulation factor.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature soldering guaranteed: 260°C/10 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg tension).
RoHS Compliant Mechanical Data Case: Terminals: Polarity: Approx Weight: Mounting Position: DO-41, molded plastic Axial leads, solderable per MIL-STD-202, Method 208 Cathode ind.
