TZMC7V5 500mW Surface Mount Zener Diodes

Value Unit Conditions PD Power Dissipation at Ta=25° C 500 mW VF Forward Voltage 1.5 V IF=200mA RthJA Thermal Resistance Junction to Ambient 0.3 K/mW TJ Operating Junction Temperature Range -65 to +175 °C TSTG Storage Temperature Range -65 to +175 °C Note: Valid provided that leads at .

TZMC7V5 Features

* Planar Die Construction

* 500mW Power Dissipation

* Very Sharp Reverse Characteristic

* Very High Stability

* Low Reverse Current Level

* Standard Zener Voltage Tolerance is ±5 %

* Ideally Suited for Automated Assembly Processes

* RoHS Compliant MiniMelf Mechanica

TZMC2V4-TAITRON.pdf

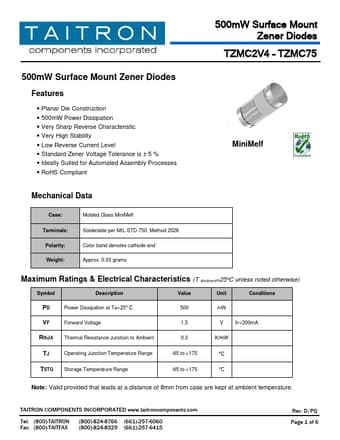

TZMC7V5 Datasheet Preview — This datasheet PDF includes multiple part numbers: TZMC7V5, TZMC2V4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TZMC7V5, TZMC2V4

Manufacturer:

TAITRON

File Size:

468.94 KB

Description:

500mw surface mount zener diodes.

Note:

This datasheet PDF includes multiple part numbers: TZMC7V5, TZMC2V4.
Please refer to the document for exact specifications by model.
