NR3010T100M - SMD POWER INDUCTORS

TAIYO YUDEN

Datasheet Details

Part number	NR3010T100M
Manufacturer	TAIYO YUDEN
File Size	689.28 KB
Description	SMD POWER INDUCTORS
Datasheet	NR3010T100M Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NR301E	Linear Regulator	SANKEN
NR302A	Linear Regulator	SANKEN
NR3312	InGaAs PIN-PD RECEIVER	CEL
NR3313TQ	InGaAs PIN-PD RECEIVER	California Eastern Labs
NR3314TU	InGaAs PIN-PD RECEIVER	California Eastern Labs

Other Datasheets by TAIYO YUDEN

Part Number	Description
NR3010T150M	SMD POWER INDUCTORS
NR3010T1R0N	SMD POWER INDUCTORS
NR3010T1R5N	SMD POWER INDUCTORS
NR3010T220M	SMD POWER INDUCTORS
NR3010T2R2M	SMD POWER INDUCTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

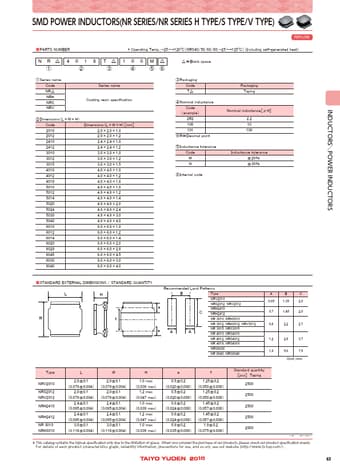

INDUCTORS POWER INDUCTORS SMD POWER INDUCTORS(NR SERIES/NR SERIES H TYPE/S TYPE/V TYPE) SMD POWER INDUCTORS（NR SERIES/NR SERIES H TYPE/S TYPE/V TYPE） REFLOW REFLOW ■PARTS NUMBER * Operating Temp.：-25～+120℃（NRS40/50/60/80：-25～+125℃）（Including self-generated heat） N R△ 4 0 1 8 T△ 1 0 0 M △ ① ② ③ ④ ⑤⑥ △＝Blank space ①Series name Code NR△ NRH NRS NRV Series name Coating resin specification ②Dimensions（L×W×H） Code 2010 2012 2410 2412 3010 3012 3015 4010 4012 4018 5010 5012 5014 5020 5024 5030 5040 6010 6012 6014 6020 6028 6045 8030 8040 Dimensions（L×W×H）［mm］ 2.0×2.0×1.0 2.0×2.0×1.2 2.4×2.4×1.0 2.4×2.4×1.2 3.0×3.0×1.0 3.0×3.0×1.2 3.0×3.0×1.5 4.0×4.0×1.0 4.0×4.0×1.2 4.0×4.0×1.8 4.9×4.9×1.0 4.9×4.9×1.2 4.9×4.9×1.4 4.9×4.9×2.0 4.9×4.9×2.4 4.9×4.9×3.0 4.9×4.9×4.0 6.0×6.0×1.0 6.0×6.0×1.2 6.
