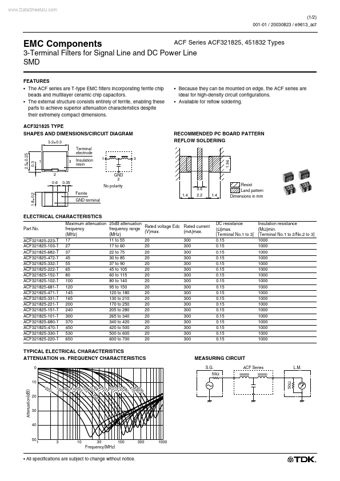

FEATURES - The ACF series are T-type EMC filters incorporating ferrite chip beads and multilayer ceramic chip capacitors. - The external structure consists entirely of ferrite, enabling these parts to achieve superior attenuation characteristics despite their extremely pact dimensions. ACF321825 TYPE SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM 3.2± 0.3 Terminal electrode - Because they can be mounted on edge, the ACF series are ideal for high-density circuit configurations. - Available for reflow soldering. REMENDED PC BOARD PATTERN REFLOW SOLDERING 2.5±0.25 0.35 Ferrite GND terminal GND 2 No polarity Insulation resin 1.8±0.2 0.6 2.2 Resist Land pattern Dimensions in mm ELECTRICAL CHARACTERISTICS Part No. ACF321825-223-T ACF321825-103-T ACF321825-682-T ACF321825-472-T ACF321825-332-T ACF321825-222-T ACF321825-152-T ACF321825-102-T ACF321825-681-T ACF321825-471-T ACF321825-331-T ACF321825-221-T ACF321825-151-T ACF321825-101-T ACF321825-680-T ACF321825-470-T ACF321825-330-T ACF321825-220-T Maximum attenuation frequency (MHz) 17 27 37 45 55 65 80 100 120 145 165 200 240 300 370 450 530 650 25d B attenuation frequency range (MHz) 11 to 55 17 to 60 22 to 75 30 to 85 37 to 90 45 to 105 60 to 115 80 to 140 95 to 150 120 to 180 130 to 210 170 to 250 205 to 280 265 to 340 340 to 420 420 to 500 500 to 600 600 to 700 Rated voltage Edc Rated current (V)max. (m A)max. 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 DC resistance (Ω)max. [Terminal No.1 to 3] 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15 Insulation resistance (M Ω)min. [Terminal No.1 to 2/No.2 to 3] 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 TYPICAL ELECTRICAL CHARACTERISTICS ATTENUATION vs. FREQUENCY CHARACTERISTICS MEASURING CIRCUIT S.G. 50Ω ACF Series L.M. Attenuation (d B) 68 47 33...
